Checking ATF: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Top up only ATF approved by Porsche.
  • The stipulated fluid level -3- is extremely important for perfect functioning of the automatic transmission, it is correct if there is a slight amount of ATF escaping at the filler screw bore -2- at temperatures between 30°C and 40°C. See Fig 1

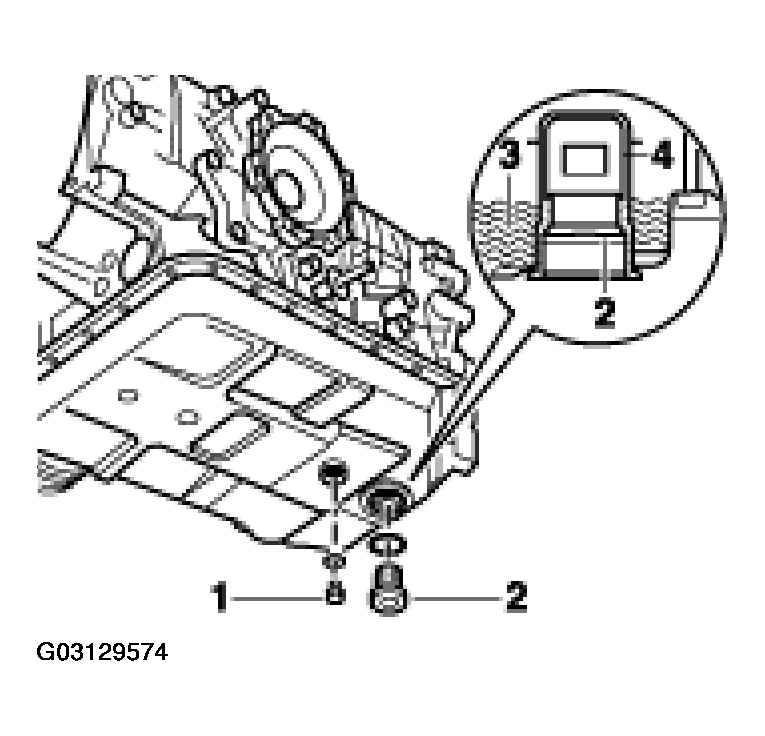

Fig 1: Unscrewing ATF Drain Screw
G03129574Courtesy of PORSCHE OF NORTH AMERICA, INC.
