Changing Transmission Oil In Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use only oils approved by Porsche.

Filling capacity: 0.8 liters

NOTE:

There is no oil drainage screw on the final drive.

Unscrew the oil filler screw and remove oil by suction using a suitable hand pump while the transmission is warm from operation.

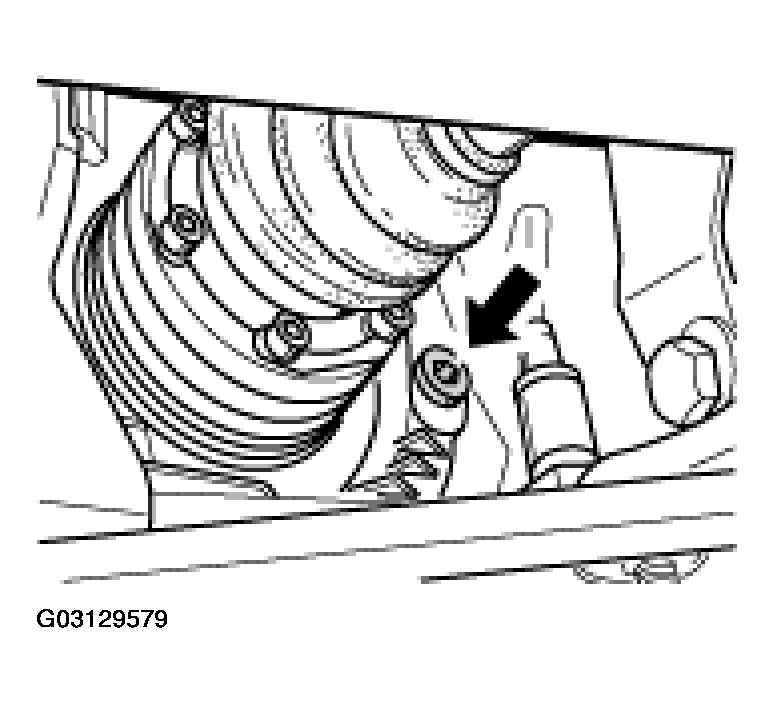

Fig 1: Locating Oil Filler Screw In Final Drive
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fill with transmission oil using filling system V.A.G 1924.
NOTE: Filling must be carried out very slowly because there is a baffle plate in the cover of the final drive.
Screw in oil filler screw with new sealing ring.

Tightening torque: 30 Nm (22 ft.lb)
