Adjusting The Parking Brake
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear wheels.
- Undo the parking brake lever and push back the disc brake pads of the rear axle until the brake disc can rotate freely.NOTE:
- To make the turnbuckle accessible, open the cover of the tray behind the parking brake lever and remove the rubber inlay and also the insert.

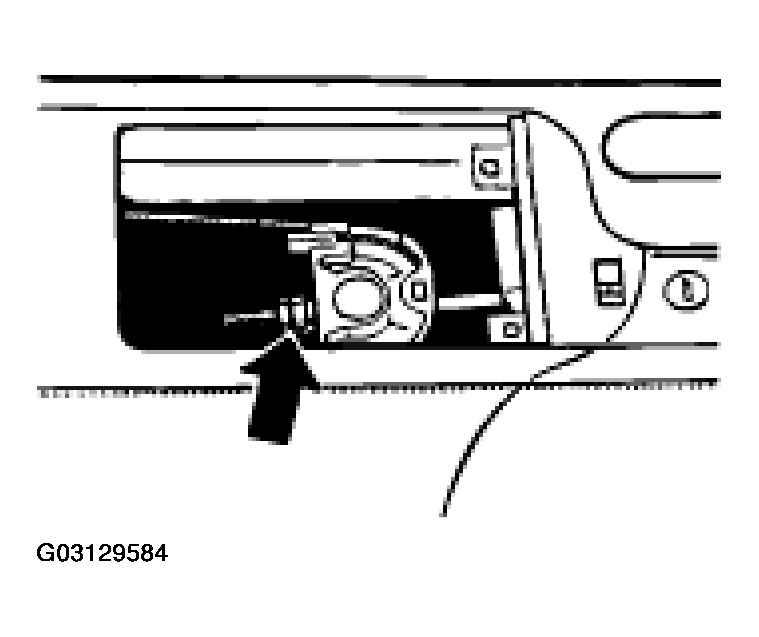

- Undo the adjustment nuts -arrow- on the turnbuckle until the cables are without pretension. See Fig 1 .

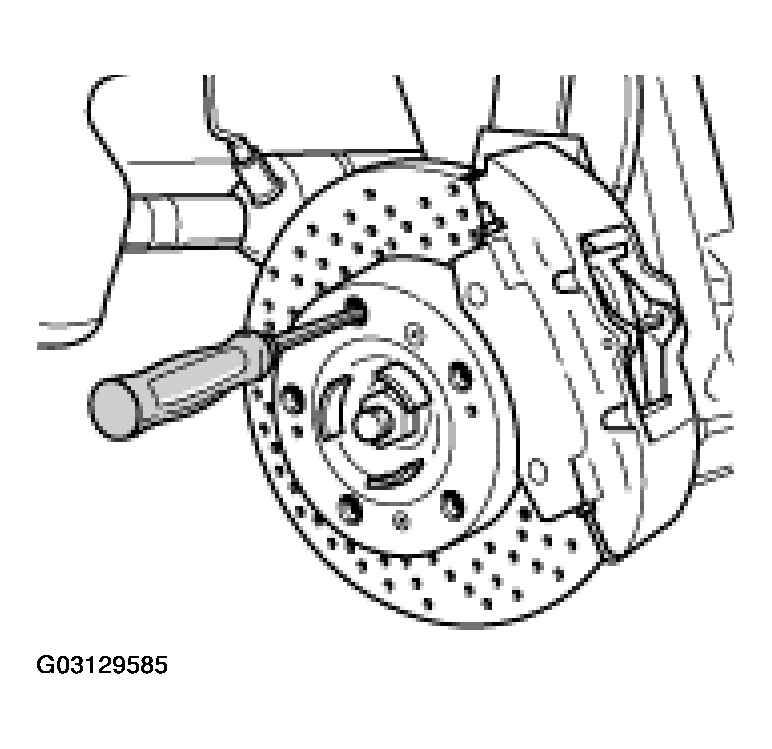

- With a screwdriver, turn the adjustment device through a wheel bolt threaded hole so that the brake disc can no longer be moved.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:- The parking brake shoe adjustment device of the Boxster has a finer toothing than the Boxster S!
- The parking brake shoes and the return springs are also different!
- Only for Boxster: Next, turn back the adjustment fixture through 9 notches again (release approx. 5 notches until the brake disc can be turned freely, then release another 4 notches).
- Only for Boxster S: Subsequently turn back the adjustment fixture through 5 notches again (release approx. 3 notches until the brake disc can be moved freely, then release another 2 notches).
- Repeat the procedure on the other wheel.
- Pull up the parking brake lever by 2 teeth and adjust the adjustment nut of the turnbuckle until both wheels can be turned manually with difficulty.
- Release the parking brake lever and check whether both wheels can be turned freely.
