Checking The Brake Fluid Level

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carry out visual inspection of brake fluid level.
NOTE:
  • The brake fluid level must be between min. and max.!

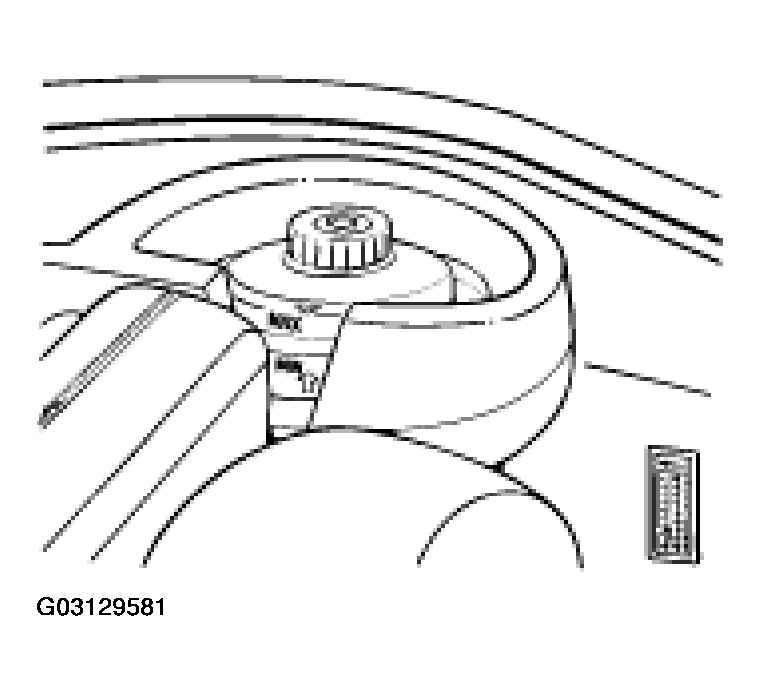

    Fig 1: Identifying Brake Fluid Level Minimum And Maximum Points
    G03129581Courtesy of PORSCHE OF NORTH AMERICA, INC.
  • Observe brake-fluid quality. Use only new DO T4 brake fluid!
  • This brake fluid is available under the following part numbers: Quantity supplied 1 liters = 000.043.203.66 container volume. 30 liters = 000.043.203.67.
  • The information applies to vehicles with and without PSM!
