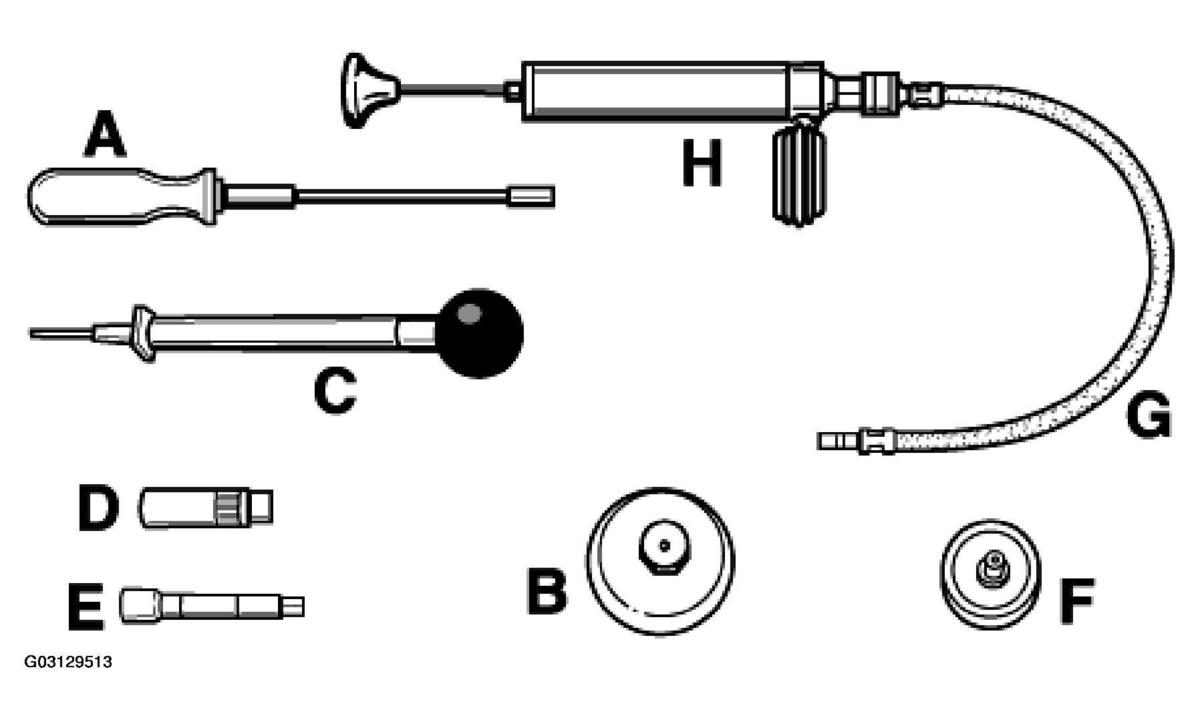

ENGINE MAINTENANCE SPECIAL TOOLS DESCRIPTION
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| A | Flexible screwdriver SW 7 | Commercially available | for undoing or tightening screw hose clamps |
| B | Oil filter key | 9204 | |
| C | Frost protection testing device | Commercially available | for checking the frost protection content in the coolant circuit. The structural shape can deviate from that in shown in the illustration. See Fig 1 . |
| E | Spark plug socket wrench | Commercially available | Only this tool has been tested and approved. |
| E | Extension 3/8 inch, 16° moveable | Commercially available | Only this tool has been tested and approved. |
| F | Cooling system testing device | Commercially available | Lid for coolant expansion tank (DS 22) |
| G | Cooling system testing device | Commercially available | Flexible extension (Fz 100 K) |
| H | Cooling system testing device | Commercially available | Pressure pump with pressure gauge (TVU 138/3) |
