Removing Air Cleaner Element

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open engine compartment. To do so, remove the top cover below the convertible top.
  2. Press both spring clips on the air cleaner housing outwards (in the engine compartment on the left vehicle side) and raise the air cleaner housing slightly.

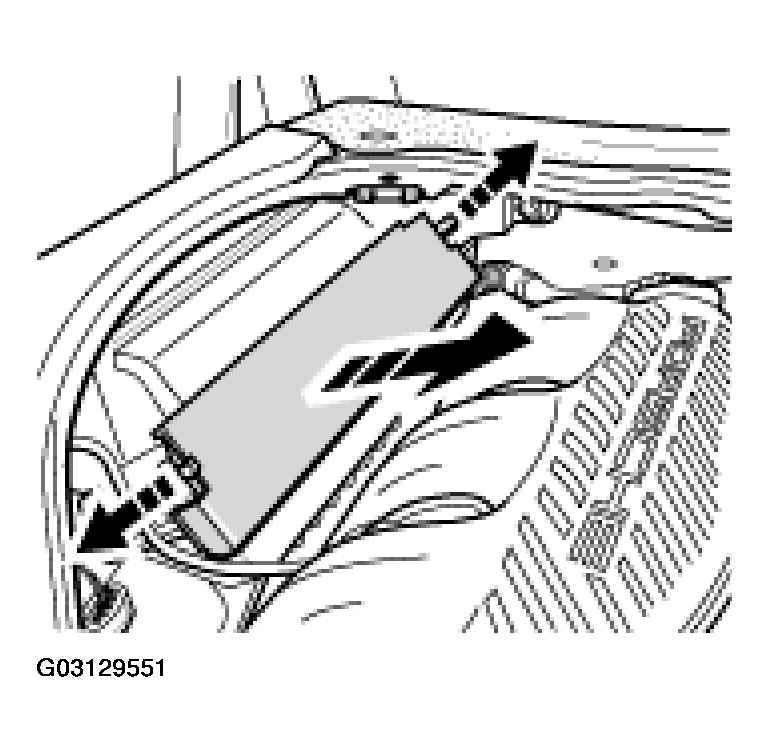

    Fig 1: Pressing Spring Clips On Air Cleaner Housing
    G03129551Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Pull out air cleaner element. To do so, first pull out the air cleaner drawer and then pull out the filter element after it.

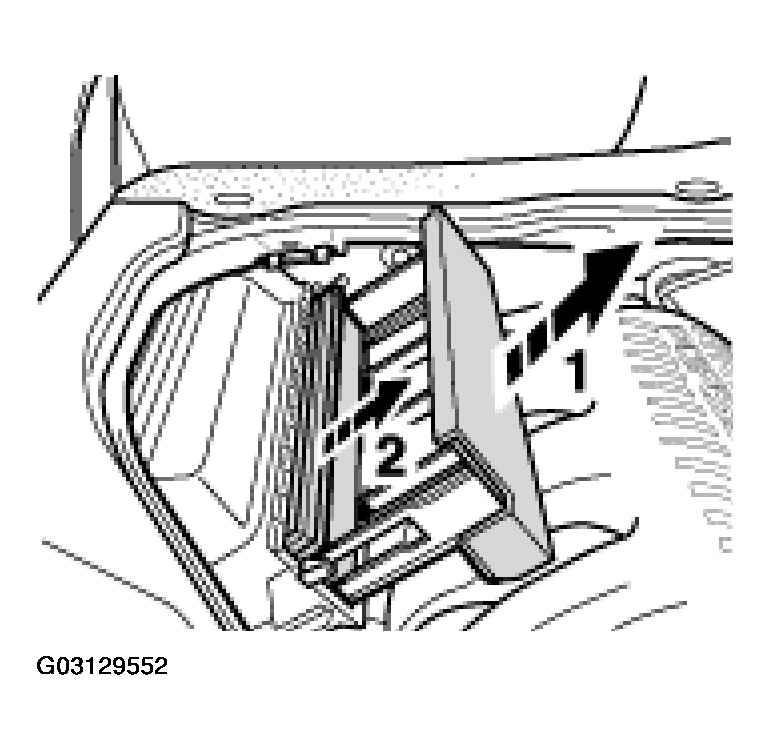

    Fig 2: Pulling Out Air Cleaner Element
    G03129552Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Remove drawer with the filter element from the air cleaner housing and remove the air cleaner element.

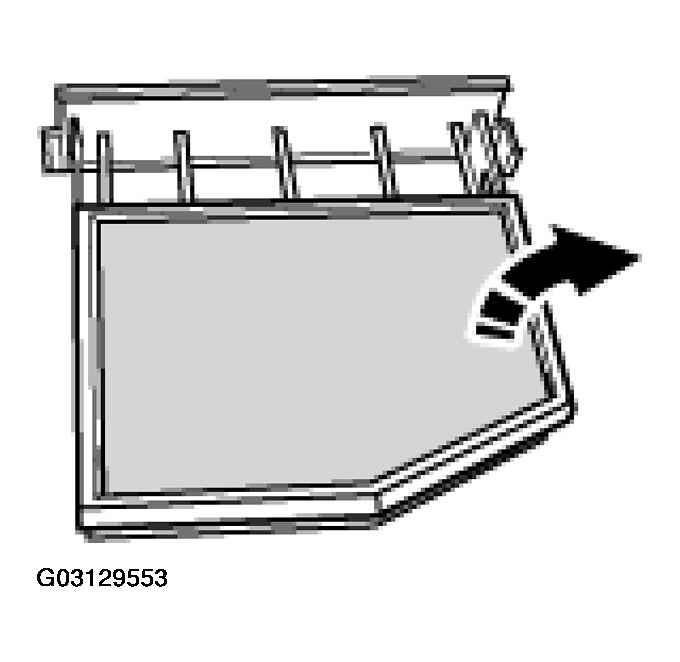

    Fig 3: Removing Air Cleaner Element
    G03129553Courtesy of PORSCHE OF NORTH AMERICA, INC.
