Installing Air Cleaner Element

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The air cleaner housing should not be cleaned with compressed air.
The hot film mass airflow meter can fire damaged if compressed air is used for cleaning.

Check air cleaner housing for soiling and if necessary wipe out the air cleaner housing with a lint-free cloth.
Insert the new filter element into the air cleaner drawer.

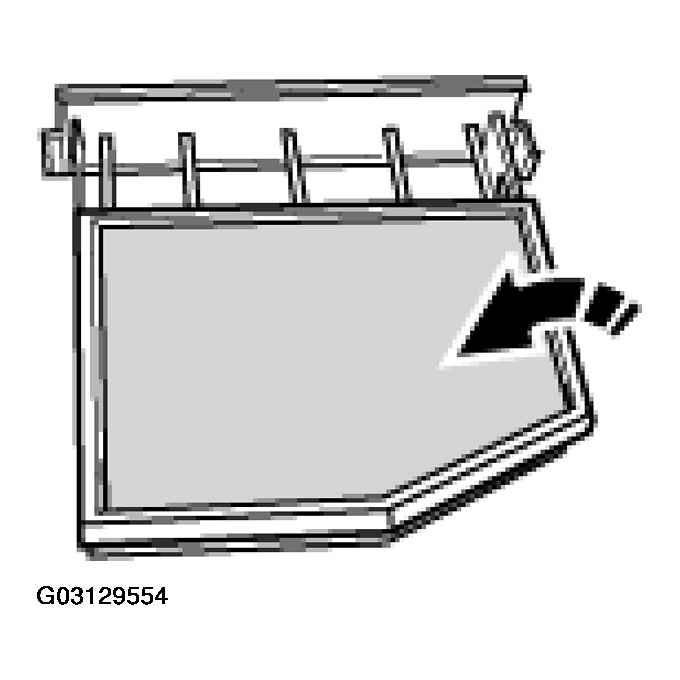

Fig 1: Inserting Filter Element Into Air Cleaner Drawer
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Position pushing unit with filter insert onto the air cleaner housing. Carefully insert the filter element first with both hands and then the push the drawer in after it.

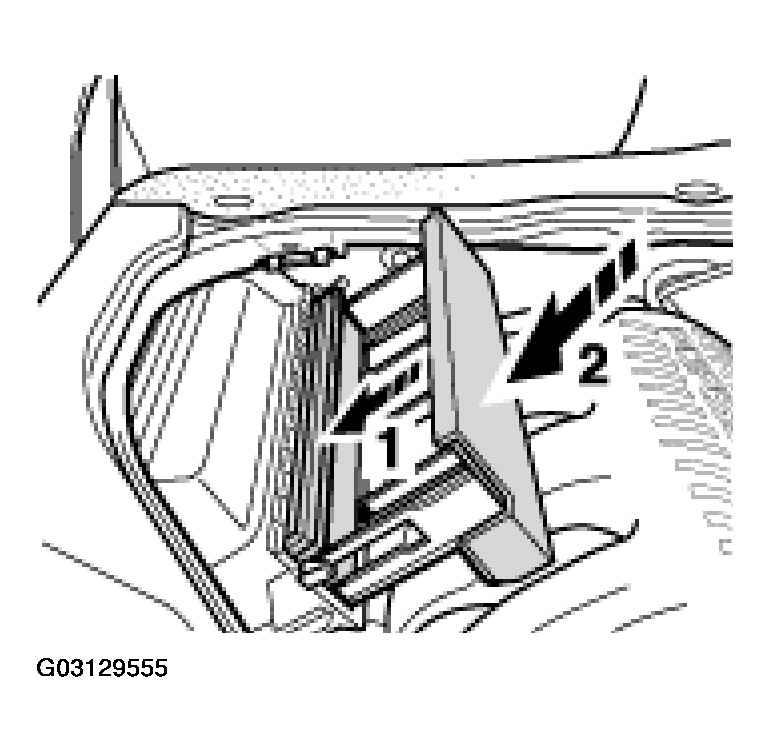

Fig 2: Inserting Filter Onto Air Cleaner Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push the drawer firmly against the air cleaner housing. Both spring clips must lock with an audible click.

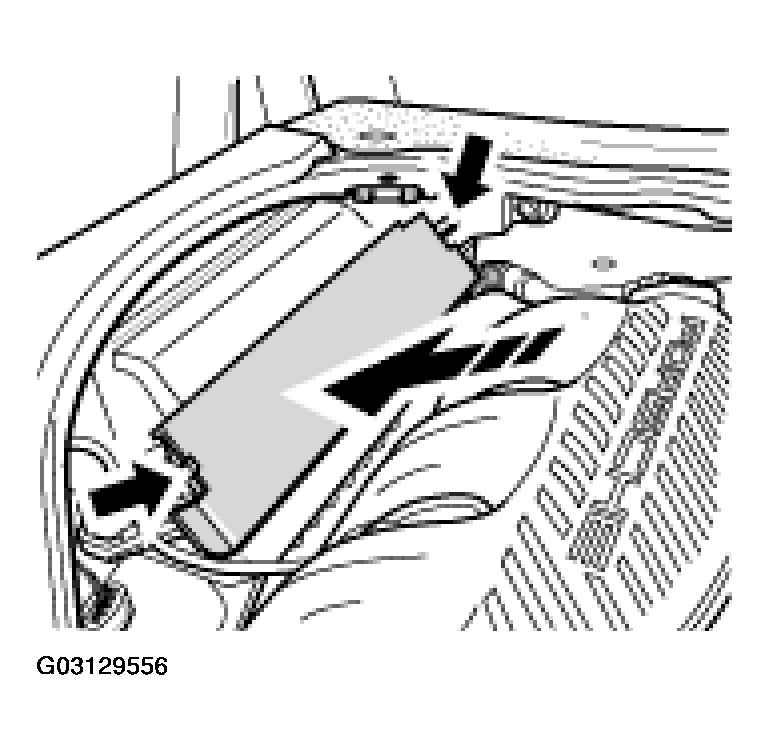

Fig 3: Pushing Drawer Against Air Cleaner Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
