Coolant: CHECKING THE LEVEL AND ANTIFREEZE PROTECTION CONTENT

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Protect the luggage compartment floor against soiling with a suitable cover.

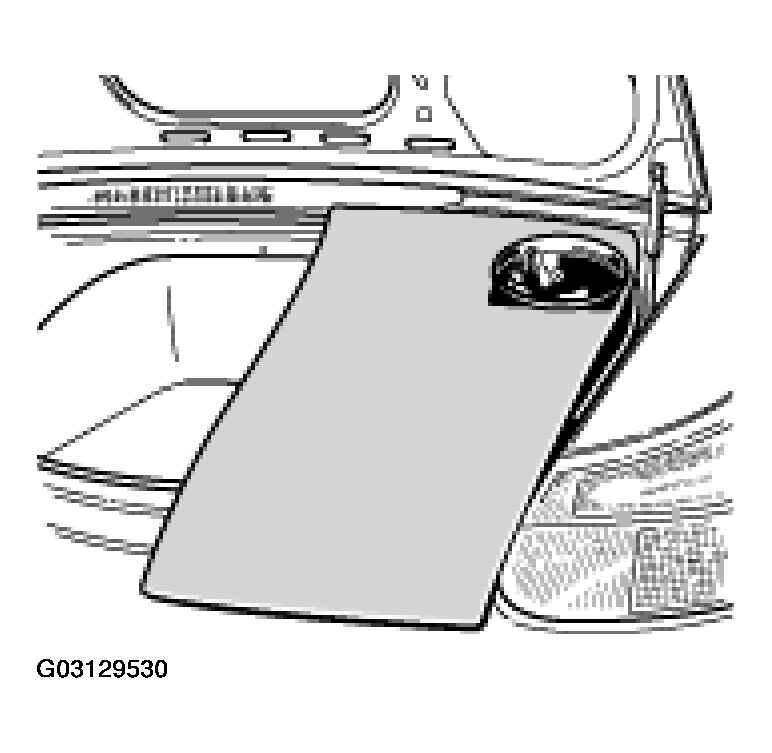

Fig 1: Protecting Luggage Compartment Floor
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- The engine cooling system is factory-filled with a coolant which does not need to be changed. The coolant should not be mixed with other coolants
- Only Original Porsche anti-freeze should be used when changing or topping up the coolant.
- A conclusion about the anti-freeze content can not be made on the intensity of the coolant color in the expansion tank.
CAUTION:
- Danger of scalding
- Coolants can be extremely hot and pressurized.
- Wear suitable protective equipment.
- Carefully open the lid on the expansion tank.
Carefully undo the lid on the coolant expansion tank.

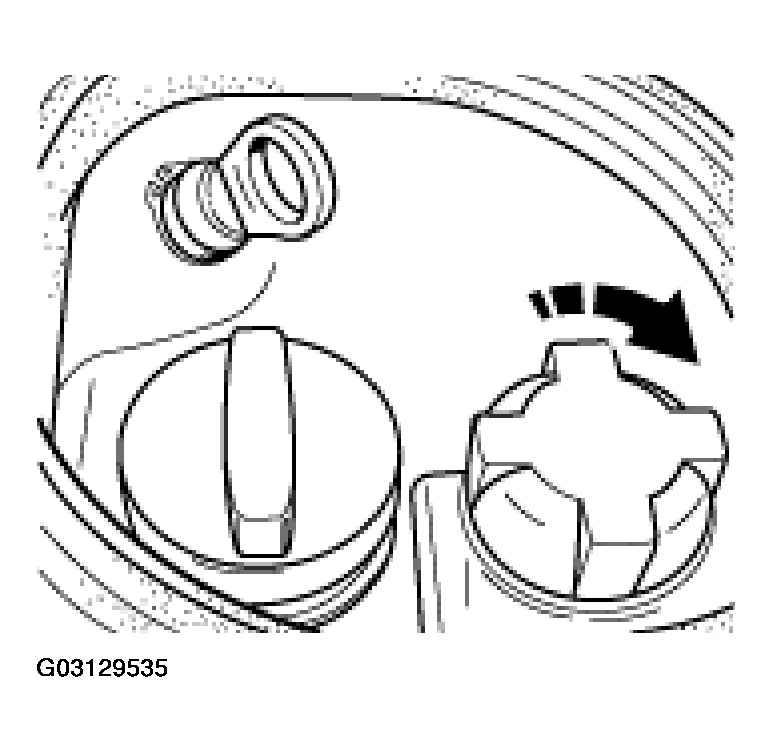

Fig 2: Opening Lid On Coolant Expansion Tank
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check the anti-freeze content with a frost protection testing device. If it is lower than - 35°C, it should be corrected accordingly.

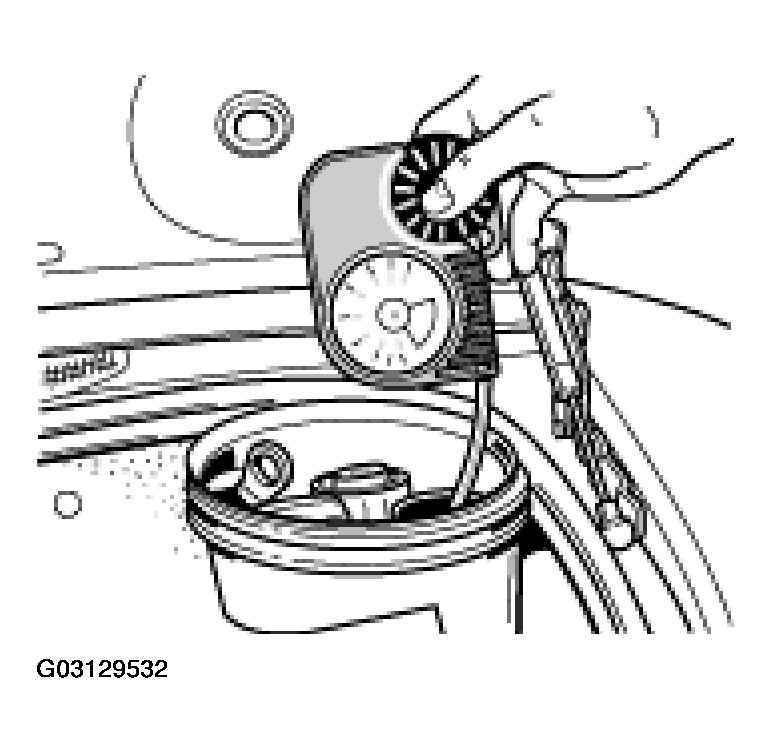

Fig 3: Checking Anti-Freeze Content With A Frost Protection Testing Device
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check the engine coolant level. This should not lie below the minimum marking when cold.
Check the cooling system for leaks. To do this, apply a test pressure of approx. 1 bar using the cooling system test device and check the hose connections for leakage or tighten the screw hose clamps. Subsequently remove the cooling system test device.

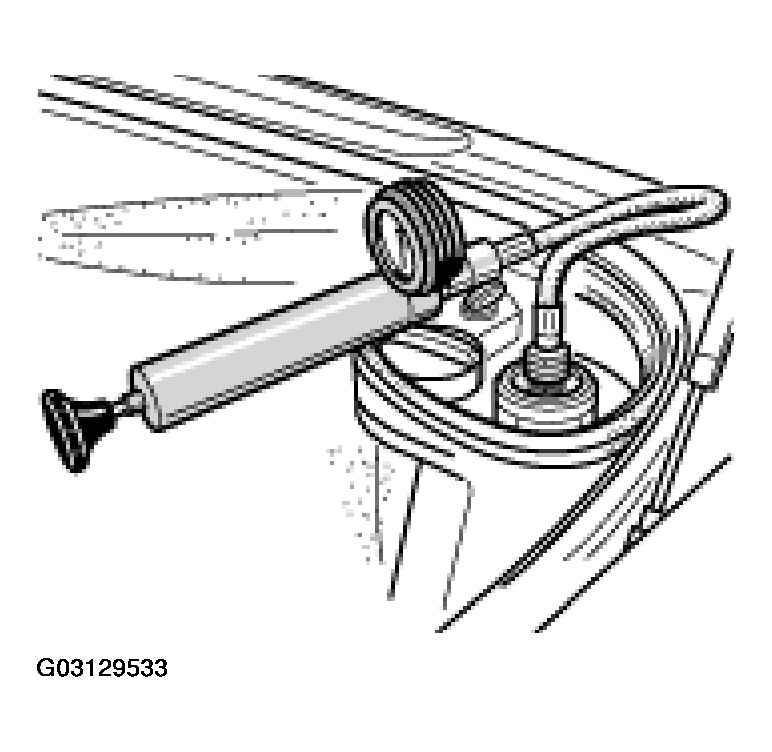

Fig 4: Applying Test Pressure Using Cooling System Test Device
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check cooling device for external dirt. The cooling device should not contain too much dirt. If necessary, it can be cleaned with a vacuum cleaner.

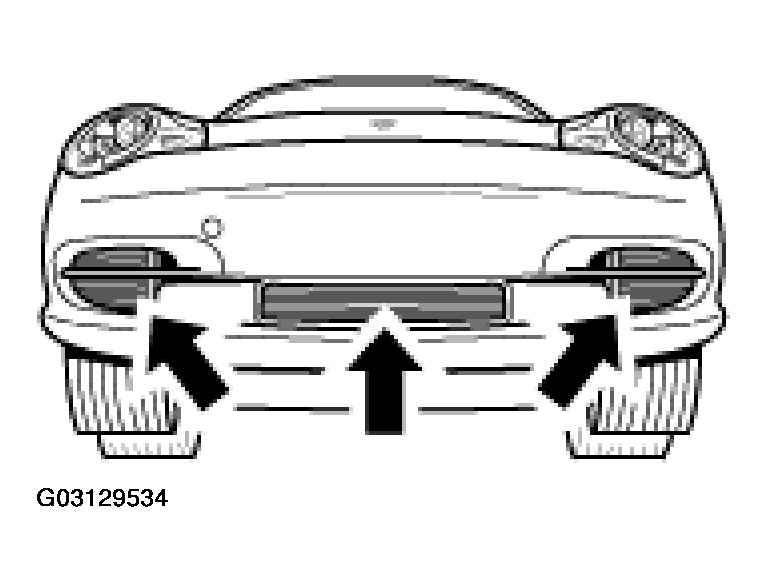

Fig 5: Checking Cooling Device For External Dirt
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Replace the cover on the coolant expansion tank and tighten.

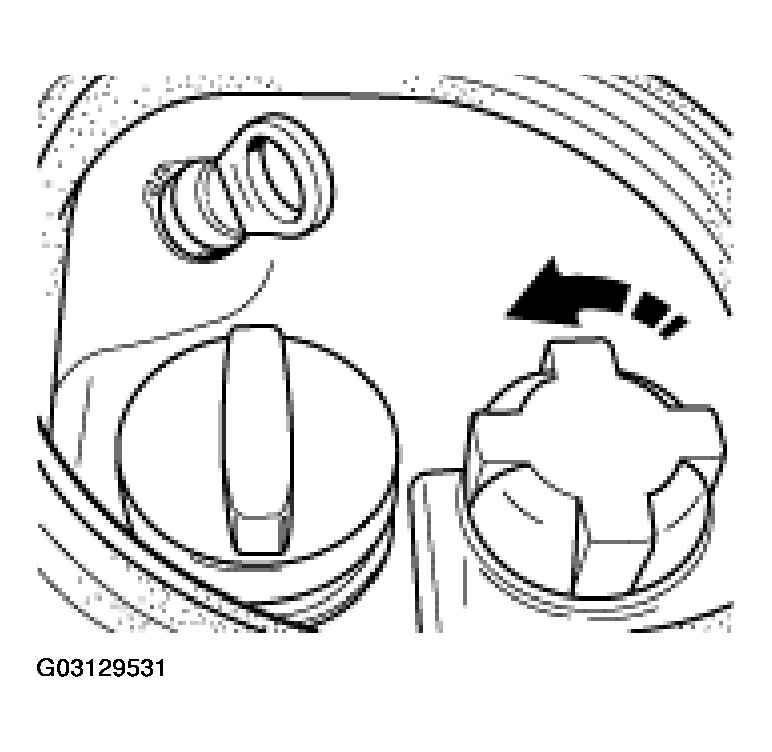

Fig 6: Tightening Cover On Coolant Expansion Tank
Courtesy of PORSCHE OF NORTH AMERICA, INC.
