Removing Main Headlight

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Risk of damage to headlights due to chafing and excessive temperatures.
  • Headlights must not be covered when they are switched on, e.g. wing protection or film.

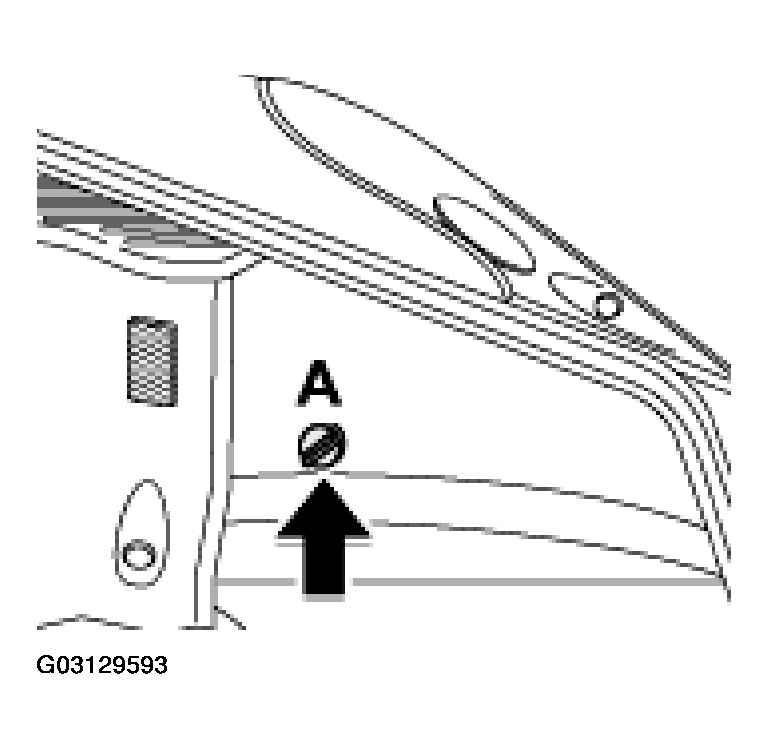

  1. Release the side carpet by unscrewing plastic nut -A- -arrow-  . See Fig 1 .
    Fig 1: Unscrewing Plastic Nut
    G03129593Courtesy of PORSCHE OF NORTH AMERICA, INC.

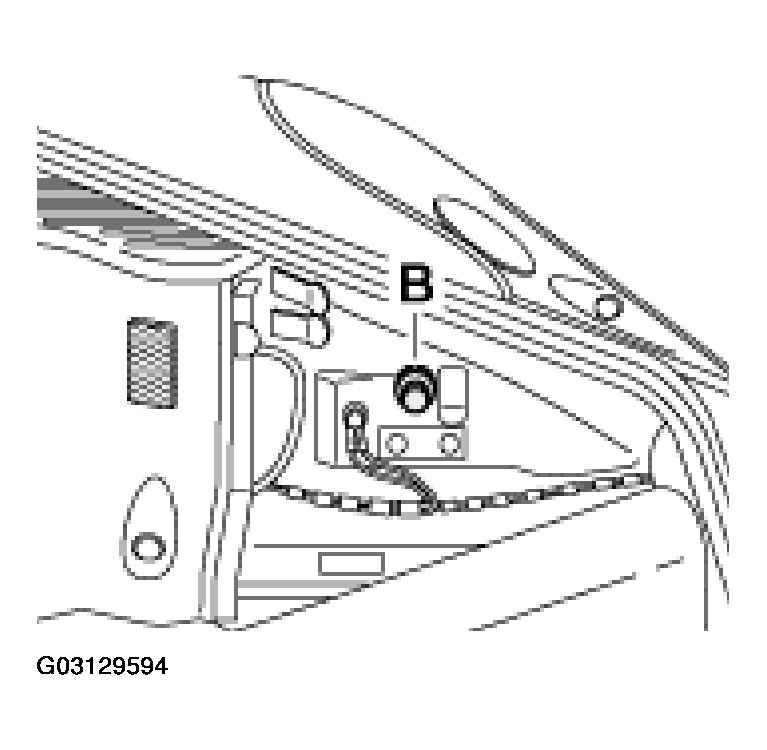

  2. Pull rubber stopper -B-  off the release opening. See Fig 2 .
    Fig 2: Pulling Rubber Stopper Off Release Opening
    G03129594Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Place the socket wrench from the tool kit on the release axle.

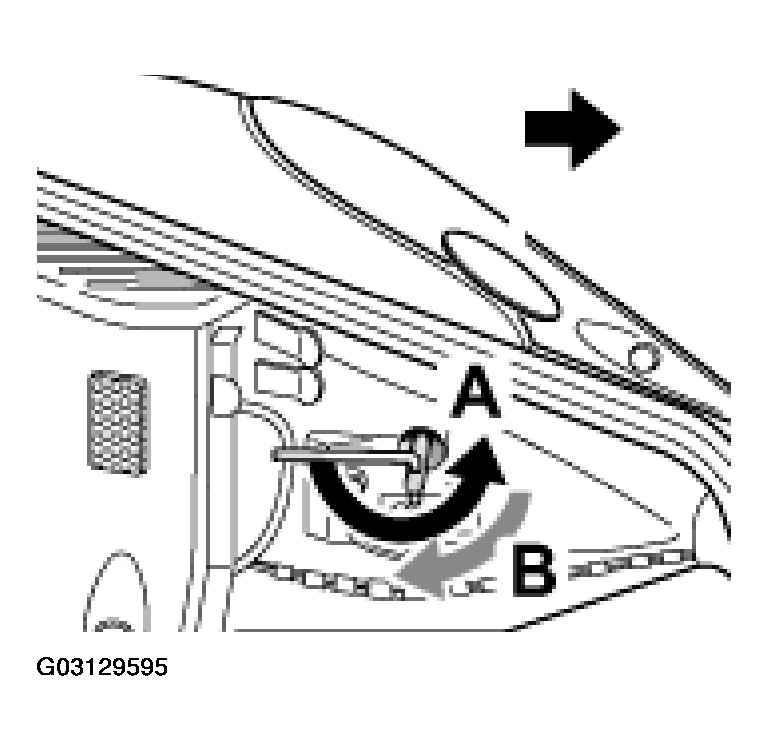

    Fig 3: Attaching Socket Wrench On Release Axle
    G03129595Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. The toggle of the socket wrench should point horizontally to the rear.
  5. Turn the socket wrench through approx. 180° -arrow A-  and leave it in position. See Fig 3 .
  6. The headlight is now unlocked and can be pulled forwards out of the wing.
  7. Turn the socket wrench back until it points vertically -arrow B-  downwards. See Fig 3 .
