Installing Main Headlight

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not attach any covers (for example, stone shields or films) in the area of the headlights.

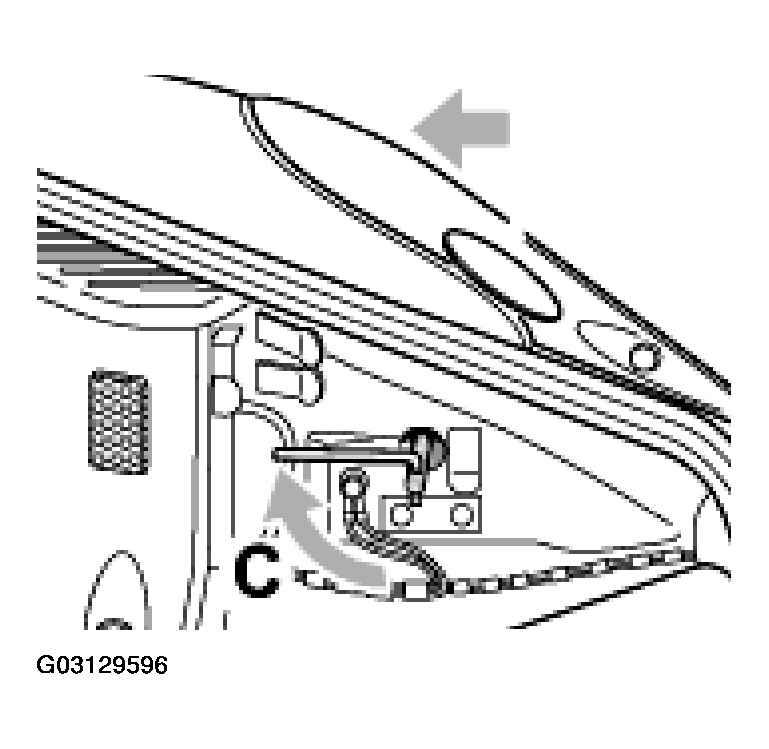

Insert the headlight into the guide rails and push it fully into the wing -arrow-. See Fig 1 .

Fig 1: Inserting Headlight Into Guide Rails
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press the headlight to the rear, turning the socket wrench at the same time until the wrench points horizontally to the rear -arrow C-. In the process, the headlight lock must engage with an audible and perceptible click. See Fig 1 .
Check the correct seating of the headlight, for example, by pulling gently in the area of the fog light.
Insert rubber stopper in the release opening.

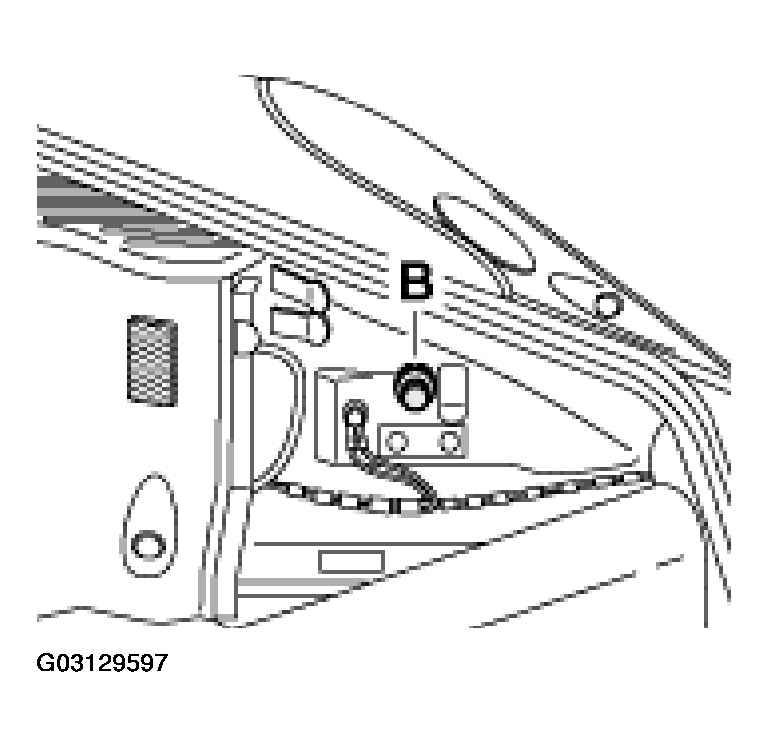

Fig 2: Installing Rubber Stopper
Courtesy of PORSCHE OF NORTH AMERICA, INC.

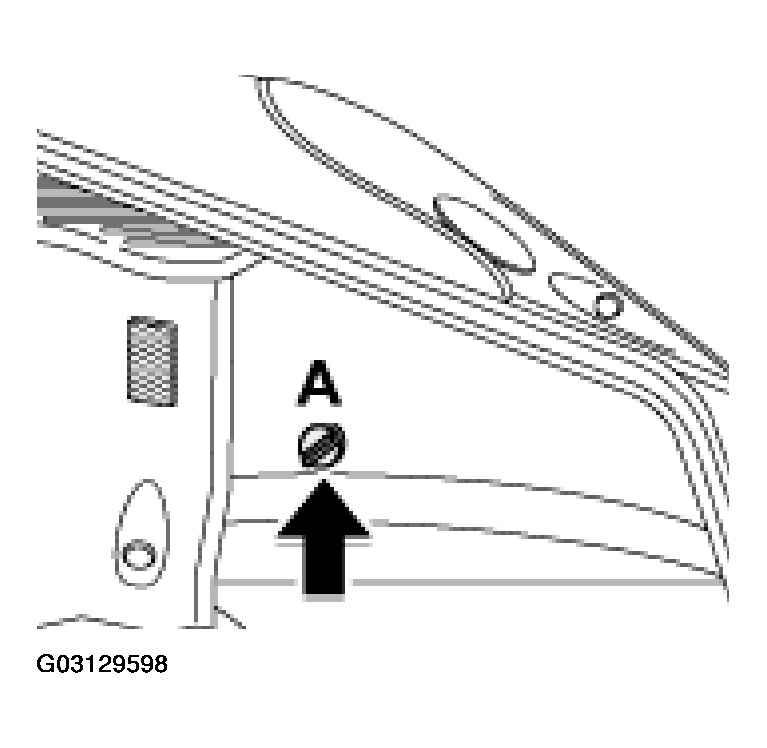

Screw the side carpet tight with the plastic screw -A- . See Fig 3 .

Fig 3: Installing Plastic Nut
Courtesy of PORSCHE OF NORTH AMERICA, INC.
