Fog Light Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The vehicle must be on a horizontal surface!

Make the adjustment with the vehicle ready for driving (fuel tank full, driver's seat occupied by a person or 75 kg, the tire pressure must correspond to the stipulated values) using a headlight adjustment unit.

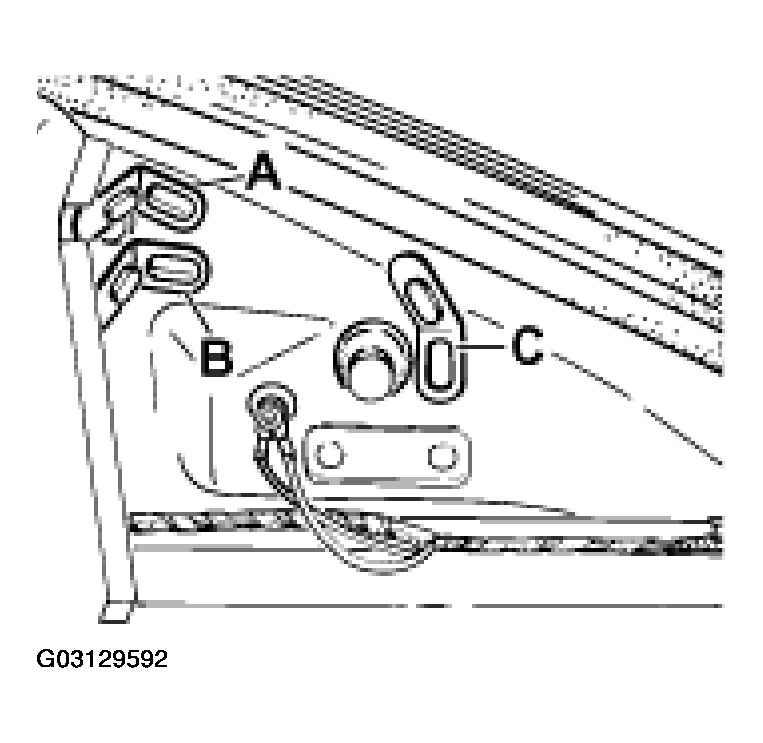

Fig 1: Identifying Fog Light Adjustment Screw
Courtesy of PORSCHE OF NORTH AMERICA, INC.

C Fog light adjustment

NOTE: Switched-on headlights must not be covered by a front apron or film!
