Read Out Fault Memory
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

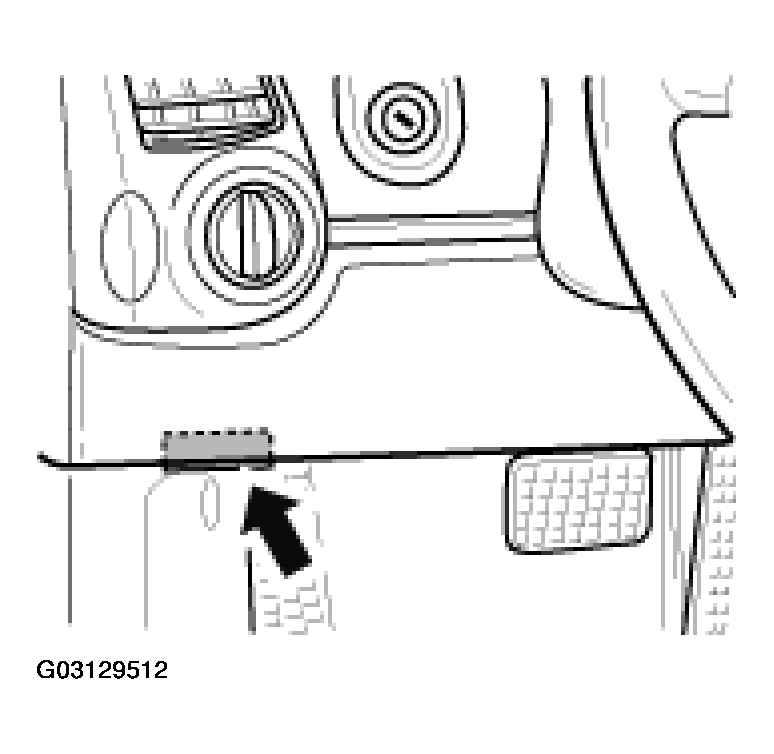

The method of reading out the fault memory is described in the operating instructions for the Porsche System Tester 2. The operating instructions are supplied with each Tester. The Porsche System Tester 2 is connected to the vehicle via a 16-pin diagnosis socket. The diagnosis socket is located inside the vehicle below the instrument panel near to the driver (left-hand drive vehicles) or the passenger (right-hand drive vehicles) -arrow-. . See Fig 1 .
