Welding in front wall
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE OF NORTH AMERICA, INC. FRONT WALL WELDING PROCEDURE
| No. |
Procedure |
Instructions |
| 1 |
Plug-welding front wall/side members and wheel housings |

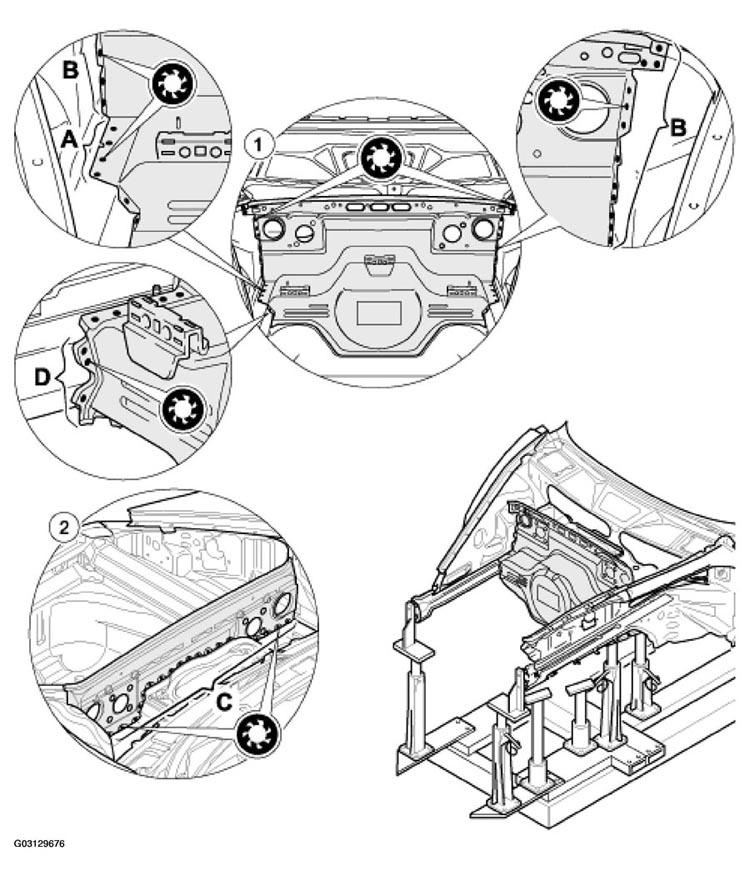

Plug-weld the front wall to the side members -A-, D-B-
. See Fig 1
. |
| 2 |
Plug-welding radiator tank/front wall. |
Plug-weld radiator tank to the front wall -C-
. See Fig 1
. |
