Preparing front wall for installation and fitting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

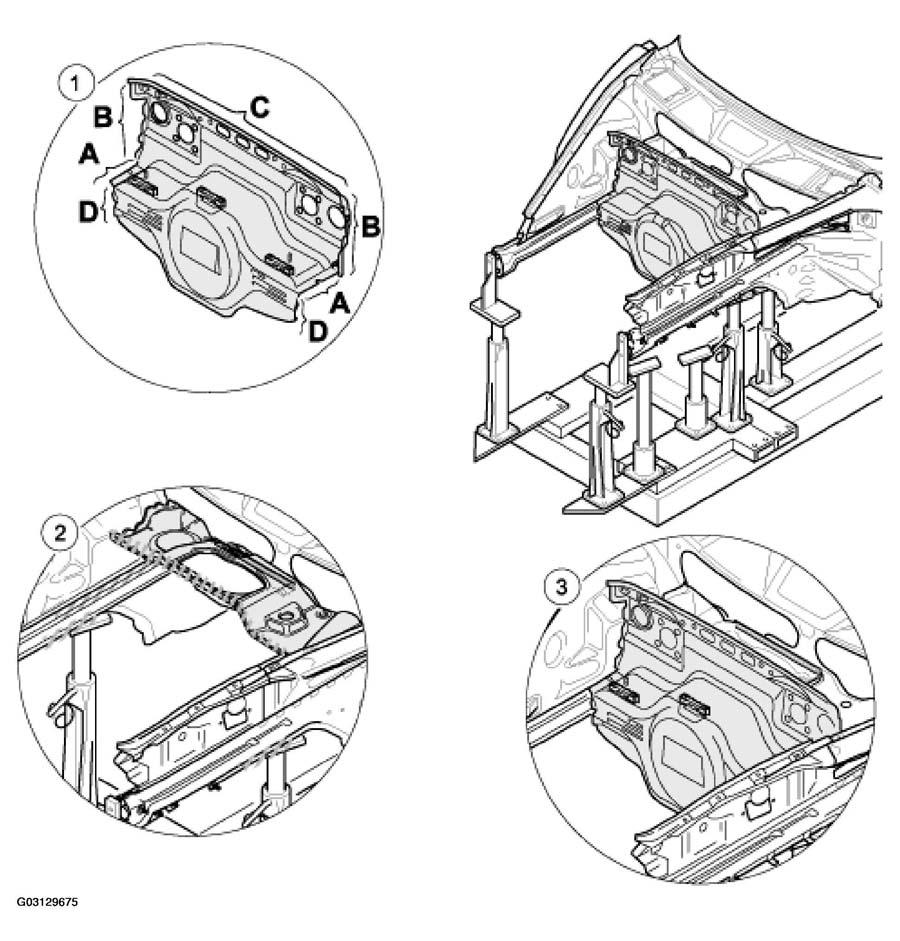

Fig 1: Preparing Front Wall For Installation And Fitting

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT WALL PREPARING PROCEDURE

No.	Procedure	Instructions
1	Preparing spare parts	Remove the factory-applied primer on the welding areas of the spare parts -A, B, C, D,- . See Fig 1 .
2	Cleaning the welding areas	Remove underbody coating and paint layers, etc. from the welding areas of the body with a hot-air gun or rotary brush.
3	Inserting the front wall into the body	Adjust the spare front wall to the side members and the radiator tank. Fitting of the following parts, see REPLACING CLOSING PANEL
