Preparing and fitting the front inner side member for installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
FRONT INNER SIDE MEMBER PREPARING AND FITTING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

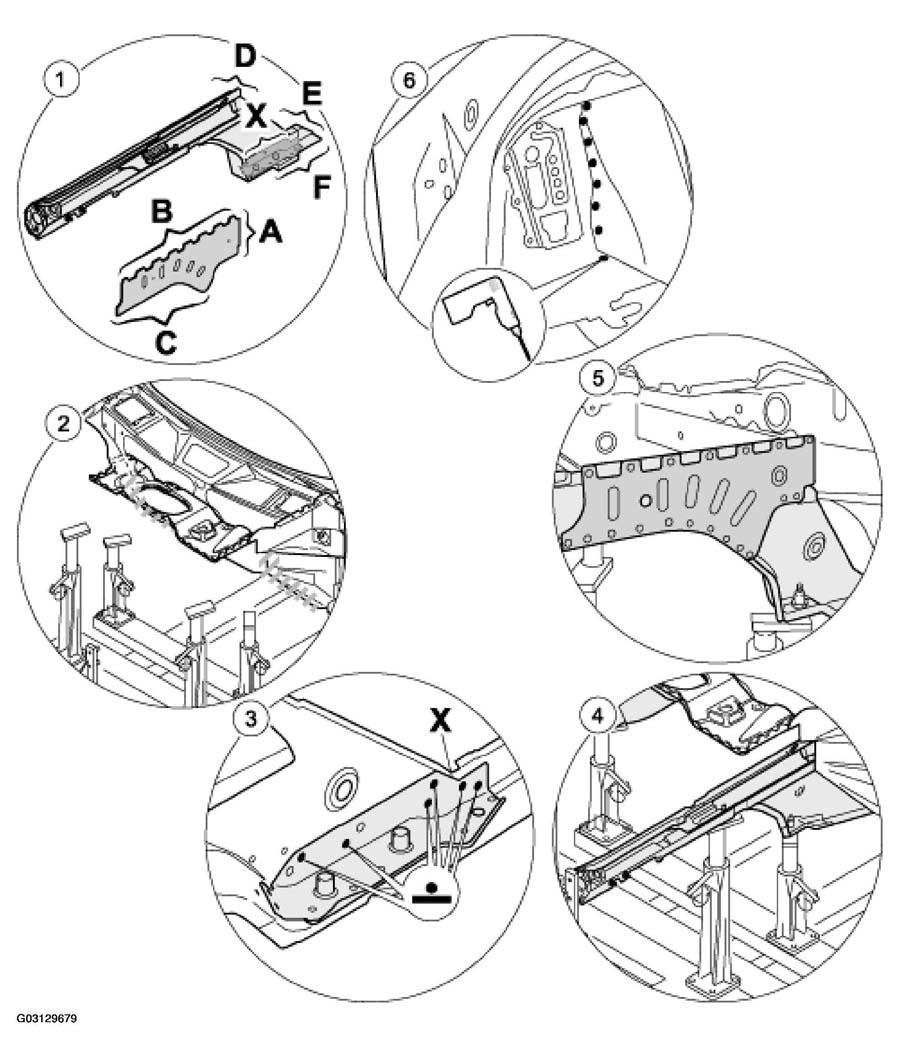

| 1 | Cleaning the welding areas | Remove the factory-applied primer on the welding areas of the spare parts -A, B, C, D, E, F, G, X- . See Fig 1 . |
| 2 | Cleaning welding and sealing areas | Remove underbody coating and paint layers, etc. from the welding areas of the body with the hot-air gun or rotary brush. |
| Coat single point flange areas with zinc-rich varnish. | All single point flange areas which will not receive a body adhesive application should be coated with a zinc-rich varnish -A, B, C, D, E, F, G, X- . See Fig 1 . | |
| 3 | Reinforcement spot welding | Spot-weld the reinforcement -X- . See Fig 1 . |
| 4 | Inserting the side member into the body | Straightening attachment -arrow-arrow- . See Fig 1 . |
| 5 | Fitting web plate | Fit the web plate on the inner side member. |
| 6 | Drilling through firewall | Drill open the firewall from inside (passenger compartment) using drill bit 7 mm. |
