Welding in closing panel and front floor panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

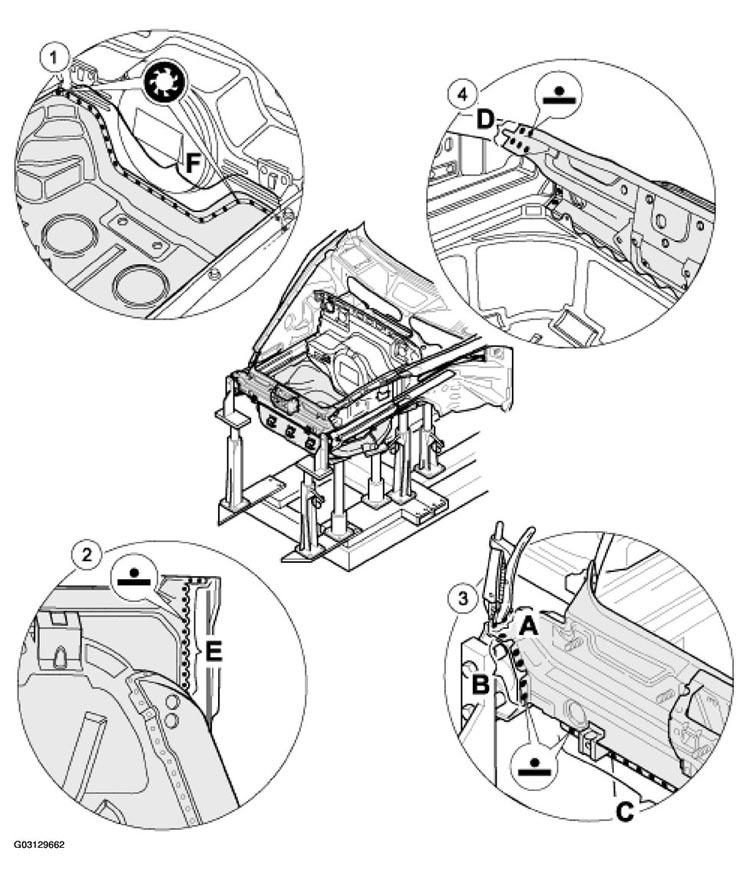

Fig 1: Welding In Closing Panel And Front Floor Panel Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CLOSING PANEL REFERENCE (WELDING)

No.	Procedure	Instructions
1	Plug-welding front floor panel to the bulkhead under shielding gas	Plug-weld the front floor panel to the bulkhead -F- . See Fig 1 .
2	Plug-welding the front floor panel to the side members under shielding gas	Align the front floor panel with the side members on the left and right -E- . See Fig 1 .
3	Spot-welding the closing panel	Spot-weld the closing panel to the front floor panel -C-A, B- . See Fig 1 .
4	Spot-welding the closing panel to the front floor panel	Spot-weld the closing panels with to wheel housings on the left and right -D- . See Fig 1 .
