Cleaning front water drains
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Material damage due to water leakage!
- Water drainage hoses can be pushed out or pressed in when blown out of the body
- The water drains should be blown out carefully with compressed air.

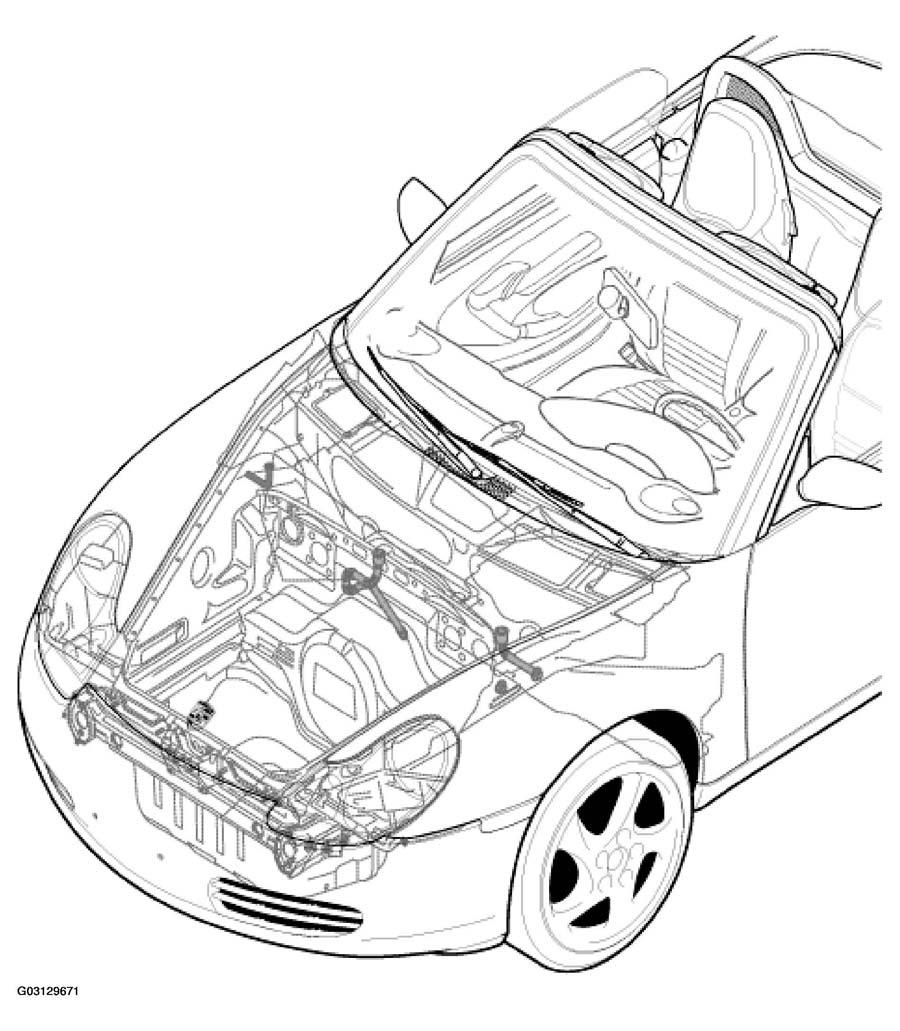

FRONT WATER DRAINS REFERENCE
| No. | Procedure | Instructions |
|---|---|---|
| Remove cowl panel cover | Refer to REMOVING AND INSTALLING COWL PANEL COVER . | |

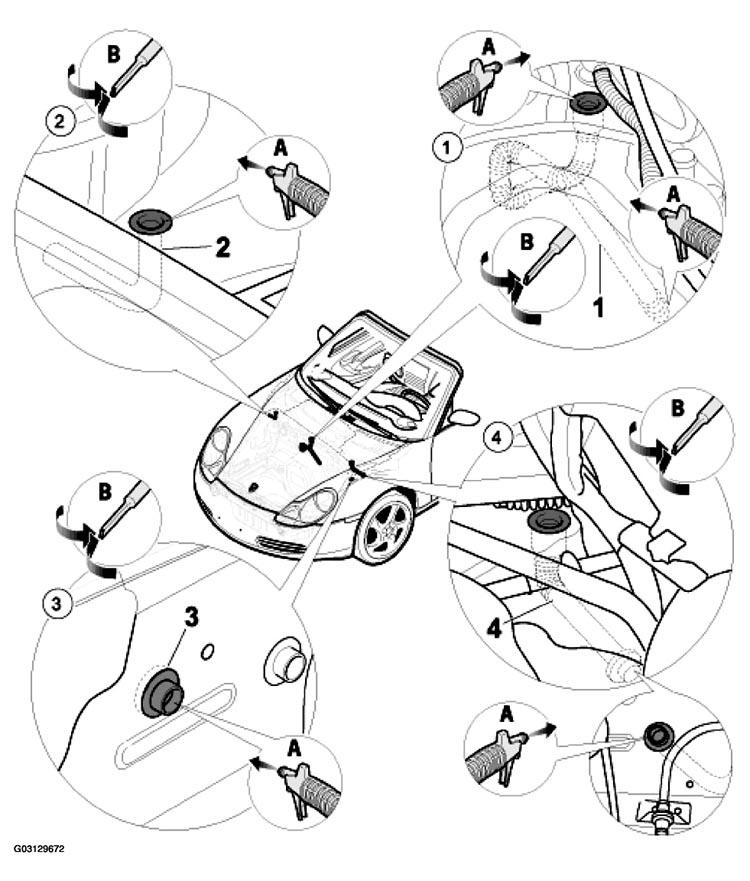

| 1 | Blow out water drains on right side of front end | Carefully blow out water drainage -1-inset A-inset B- . See Fig 2 . |
| 2 | Blow out water drains on right side of front end | Carefully blow out water drainage -2-inset A-inset B- . See Fig 2 . |
| 3 | Blow out water drainage on left side of front end. | Put vehicle onto platform lift and carefully blow out the left water drainage -3-inset B-inset B- . See Fig 2 . |
| 4 | Blow out water drainage on left side of front end. | Put vehicle onto platform lift and carefully blow out the left water drainage -4-inset A-inset B- . See Fig 2 . |
| Installing cowl panel cover | Refer to REMOVING AND INSTALLING COWL PANEL COVER . |
