Checking PENTOSIN CHF 11 S Hydraulic Fluid In The Power-Steering System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The reservoir is located in the engine compartment. There are two marks on the dipstick located on the reservoir cap. One side bears the mark "Cold" for a cold engine (approximately 20°C) and the other "Hot" for a hot engine (approximately 80°C).

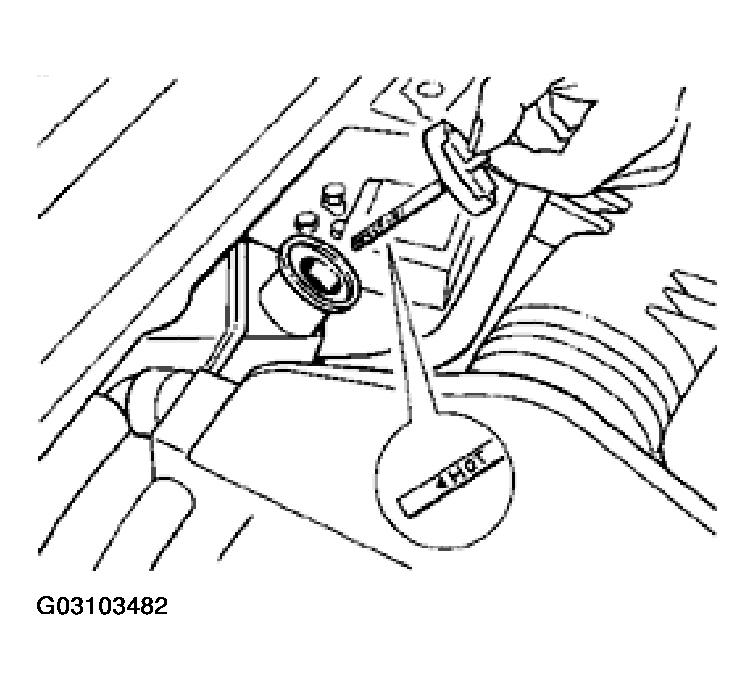

Fig 1: Identifying Power Steering Fluid Dipstick Mark

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Check the fluid level (Pentosin CHF 11 S) with the engine stationary and cold (approximately 20°C).

Open engine compartment lid. Open reservoir cap.
Wipe dipstick. Close reservoir cap and open it again. The fluid level should lie in the hatched area beneath the "Cold" mark (mark = maximum level at 20°C). Top up with Pentosin if necessary. The upper "Hot" mark is intended for a fluid temperature of 80°C.

In no case add too much Pentosin. The respective marks are for the maximum fluid level at the "COLD" or "HOT" temperature.

NOTE:

If assembly work was performed previously, check the fluid level with the engine idling and without operating the steering.
