Removing And Installing Steering Wheel (Airbag): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery and cover terminal or battery.
Remove driver's airbag unit. For this purpose, loosen the two fastening screws with a screwdriver for internal Torx T 30. Disconnect plug connection at airbag unit and at steering wheel (for horn).
NOTE:
- Replace fastening screws whenever they have been loosened.
- The airbag unit must always be set down so that the cushioned side faces upward.
- If removed for a lengthy period, the airbag unit must be stored under lock and key. Observe safety regulations.

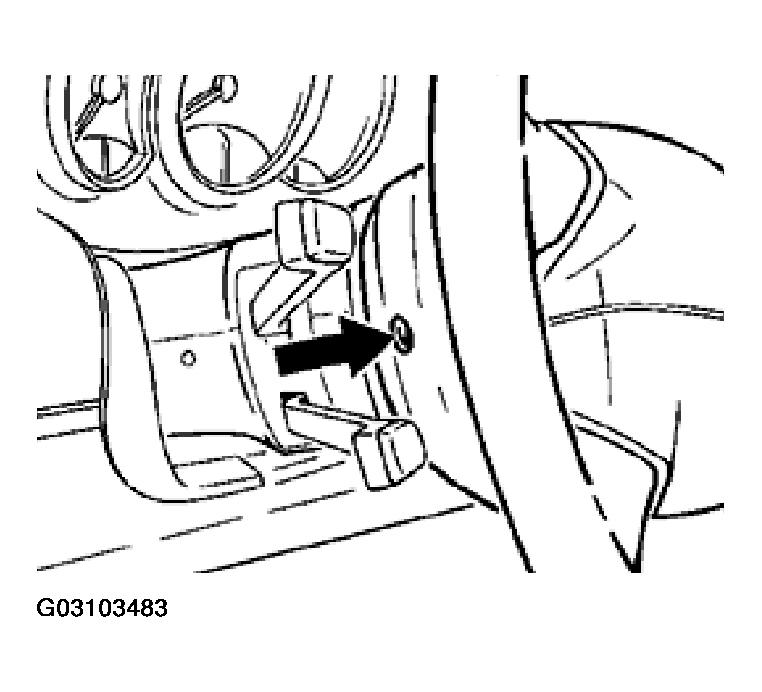

Fig 1: Locating Driver Air Bag Unit Fastening Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Loosen hexagon nut and remove together with spring washer.

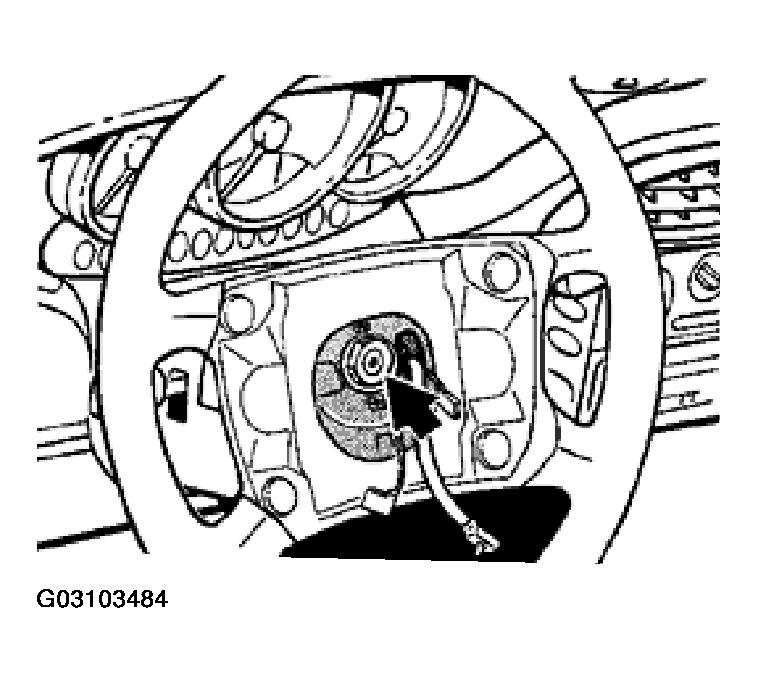

Fig 2: Loosening Steering Wheel Hexagon Nut
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Turn wheels to straight-ahead position. Then mark the position of the steering wheel with respect to the steering shaft (for refitting). Remove steering wheel (in straight-ahead position).

NOTE: To prevent unintended rotation of the contact unit (KE) when the steering wheel has been removed, the contact unit locks itself when the steering wheel is pulled back. Likewise, the contact unit unlocks automatically when the steering wheel is refitted.
