Removing And Installing Starting Switch: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable.
  2. Turn ignition key to position 0 and remove.
  3. Remove air duct (A). The air duct is plugged in. See Fig 1 .

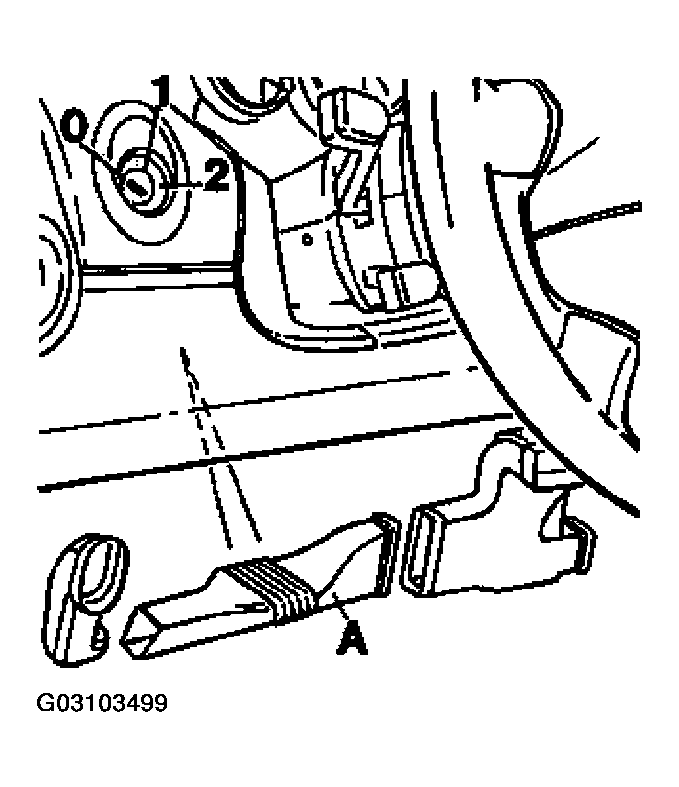

    Fig 1: Removing Air Duct
    G03103499Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull connecting plug off ignition switch.
  5. Remove screw locking paint in the threaded bores of the two fastening screws (short arrows). Slightly loosen both fastening screws (short arrows) using special tool 9631 and pull the ignition switch out of the housing (direction arrow). See Fig 2 .
Fig 2: Pulling Ignition Switch Out Of Housing
G03103500Courtesy of PORSCHE OF NORTH AMERICA, INC.
