Installing Hydraulic Pump
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

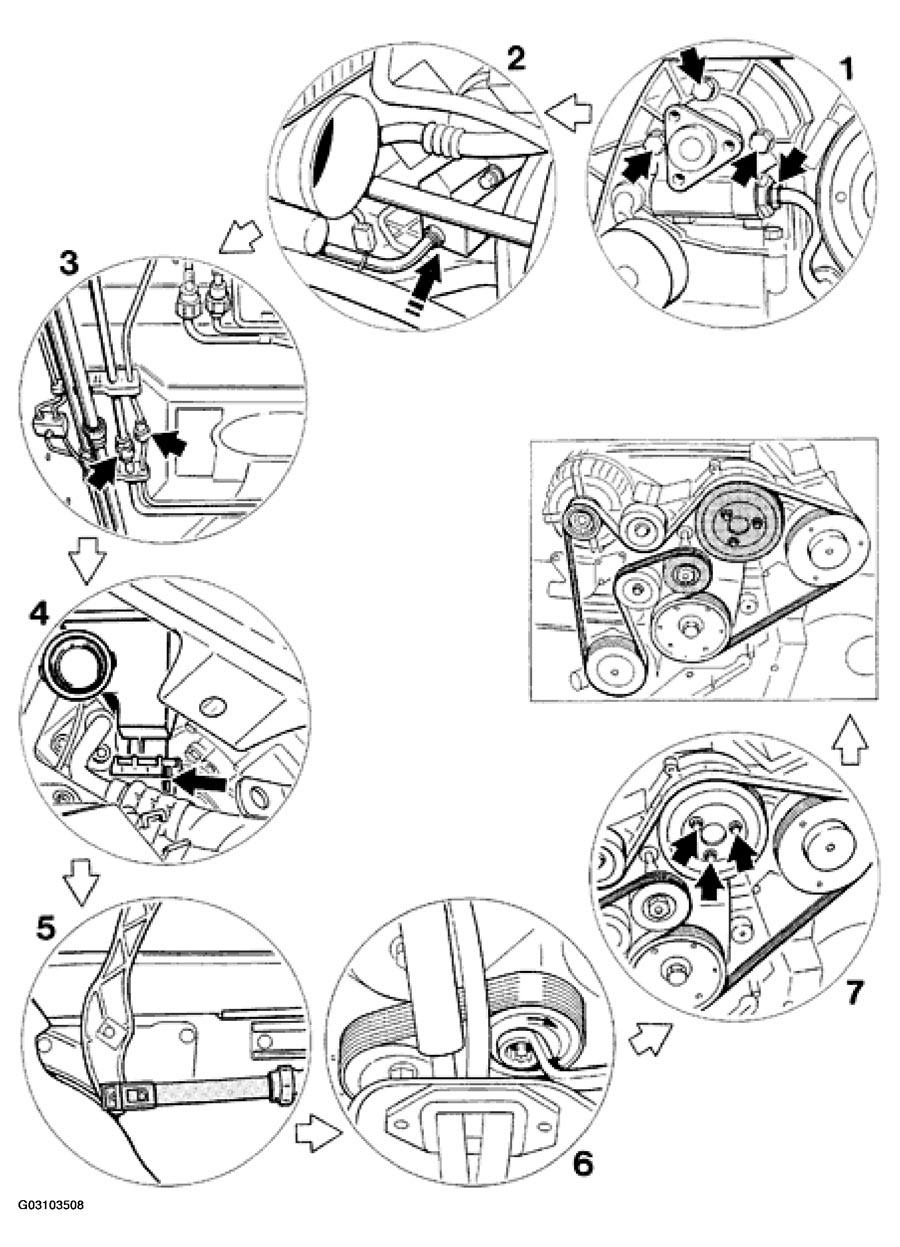

HYDRAULIC PUMP INSTALLING INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Installing hydraulic pump | Fasten bracket with tensioning element on the crankcase. Insert hydraulic pump from the rear and fasten. Tightening torque: 23 Nm (33 ftlb.) |
| 2 | Fitting steering return line | Insert line into the plug-in coupling in a straight line. Then pull slightly to ensure that the connection is properly locked. |
| 3 | Fitting steering pressure line and steering return line | The lines are plugged together. Important instructions: see OPENING AND JOINING PLUG-IN COUPLINGS . |
| 4 | Fitting supply tank for power steering system | Position supply tank (observe markings); lock bayonet lock. |
| 5 | Fitting retainer for con- vertible top compartment lid | Insert retainer in the assembly tool. Slide assembly tool with retainer onto the pin and slide off. |
| 6 | Fitting drive belt | Fit belt pulley of the hydraulic pump and screw in hexagon-head bolts. Fit drive belt. See REMOVING AND INSTALLING DRIVE BELT
. |
| 7 | Fastening belt pulley for hydraulic pump | Tighten three hexagon-head bolts. Tightening torque: 23 Nm (17 ftlb.) |
