Engine Installed Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

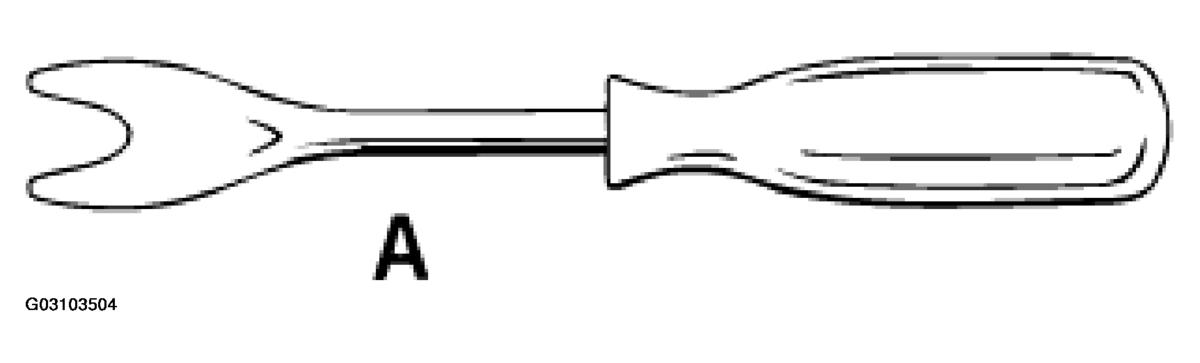

Fig 1: Identifying Special Service Tool, Removal Tool

Courtesy of PORSCHE OF NORTH AMERICA, INC.

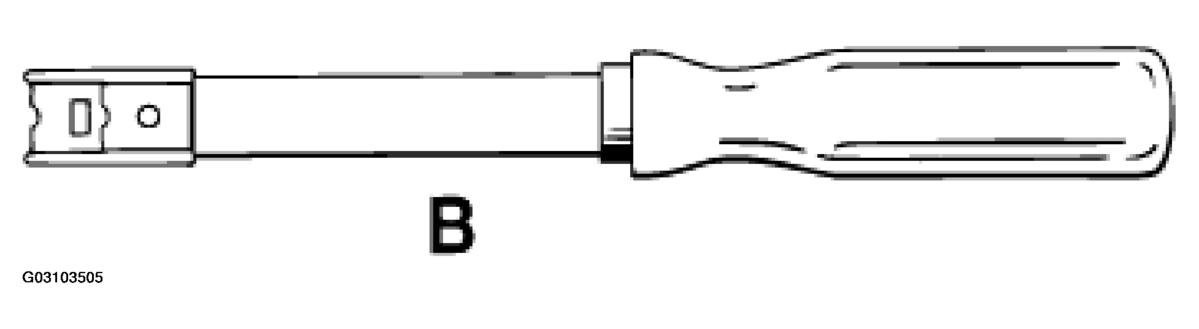

Fig 2: Identifying Special Service Tool, Assembly Tool

Courtesy of PORSCHE OF NORTH AMERICA, INC.

HYDRAULIC PUMP REMOVING AND INSTALLING TOOL EXPLANATION

No.	Designation	Special tool	Explanation
A	Removal tool see Fig 1 .	commercially available	Disconnect steering return line on hydraulic pump
B	Assembly tool for pin retainer see Fig 2	commercially available	Remove/fit hinge lock on convertible top compartment lid
