Fuel Lines
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

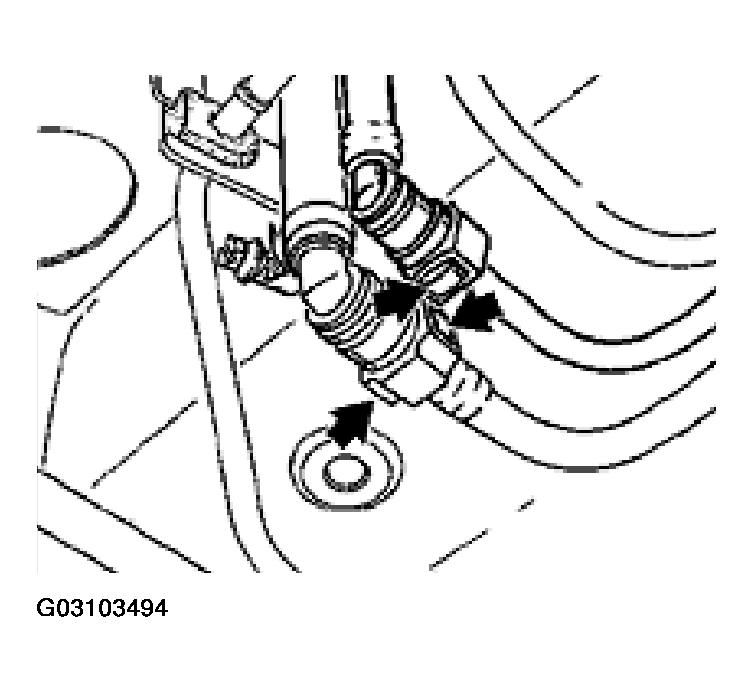

Operate unlocking button(s) (press) and simultaneously separate the pipelines by pulling them apart see Fig 1 .
Join the connection by plugging together in a straight line. The plug (the plug-in part) must audibly engage in the plug-in coupling. Then pull the connection slightly to check whether it was locked properly.
