Installing New Sucking Jet Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in reverse order.
  2. Install new sucking jet pump. Observe the correct positioning of the leads.

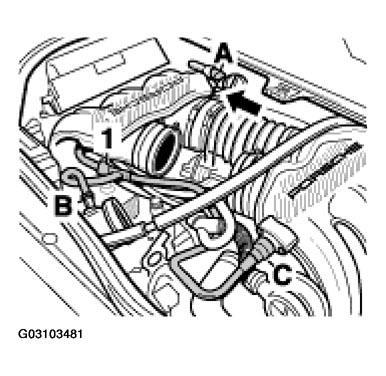

    Fig 1: Installing Sucking Jet Pump And Leads
    G03103481Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Install the intake pipe center piece together with the throttle body.
  4. Start the engine and check the intake system for leaks.
  5. Check function of brake booster.
  6. Fit convertible top again.
