Instructions And Function Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

As of the 2001 model, a sucking jet pump -1- is installed in Tiptronic vehicles!

The sucking jet pump -1- is permanently linked to the hoses -connection A/B/C- and, if replacement is necessary, the entire unit must be replaced! See Fig 1 .

In order to guarantee the accessibility of the sucking jet pump, especially for installation purposes, the intake pipe center piece and the throttle body (together) must be removed!

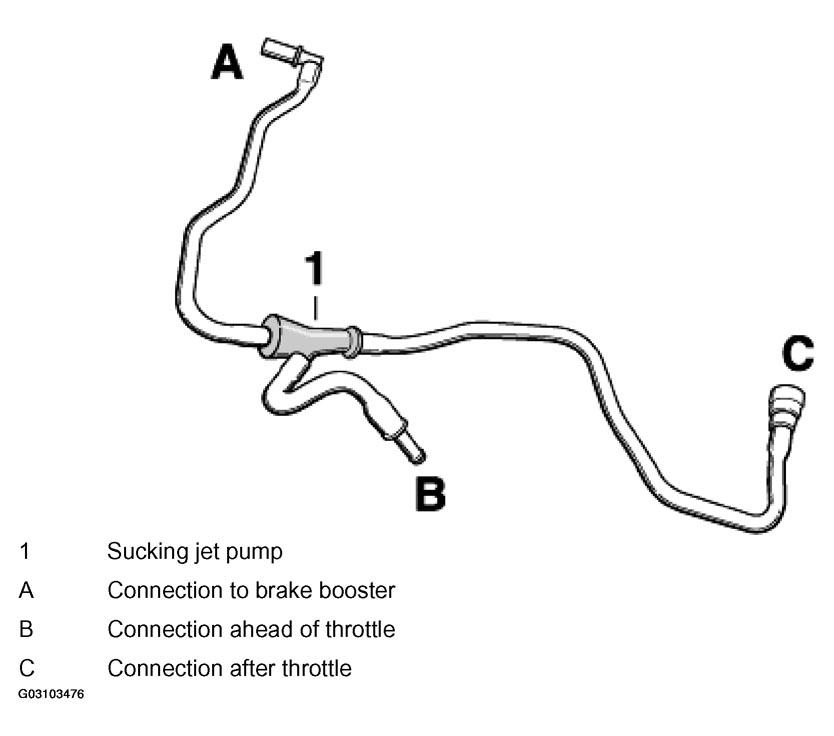

Fig 1: Identifying Sucking Jet Pump And Connections

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The sucking jet pump -1- helps to increase the engine vacuum, connection -A- , required for the brake booster, especially during the engine warm-up phase. See Fig 2 .

Function: By bypassing the throttle -D- (bypass around the throttle from connection -B- to connection -C- ), the rate of flow and so the vacuum are increased locally by the sucking jet pump -1- . This greater vacuum is applied to the brake booster connection -A- . See Fig 2 .

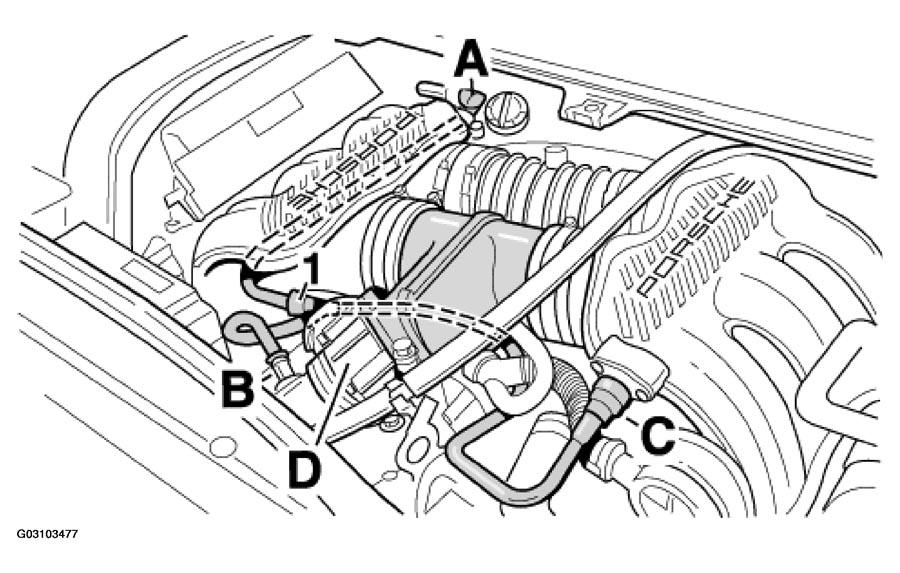

Fig 2: Identifying Sucking Jet Pump Fitting

Courtesy of PORSCHE OF NORTH AMERICA, INC.
