Removing And Installing Brake Master Cylinder: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover -A- from the hydraulic unit/brake unit. See Fig 1 .

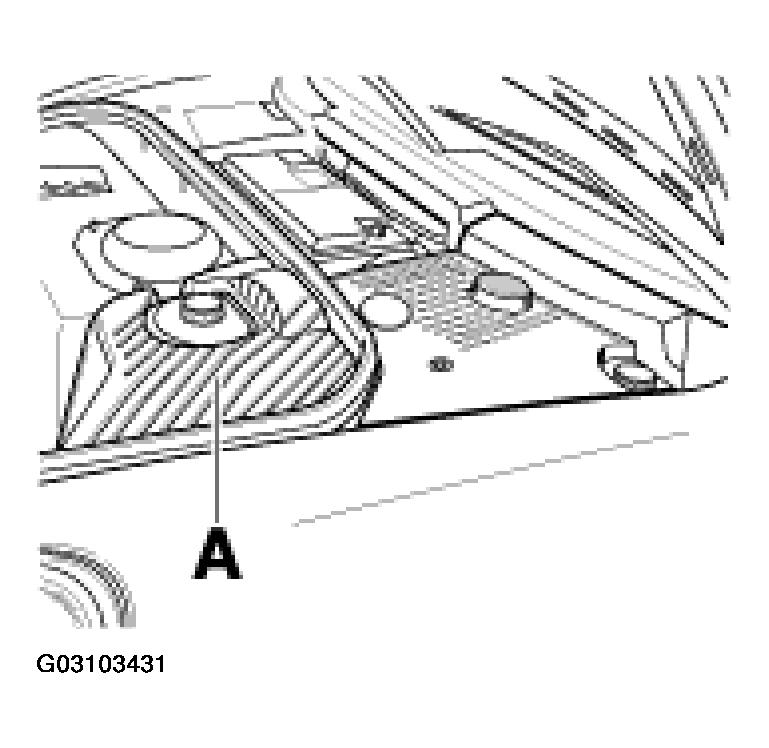

Fig 1: Removing Cover From Hydraulic Unit/Brake Unit
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Drain brake fluid expansion tank. To do so, suck brake fluid out of the expansion tank or pump out the brake fluid using the brake pedal via a front and a rear brake caliper (use collecting bottle).
Disconnect the electrical line (plug).

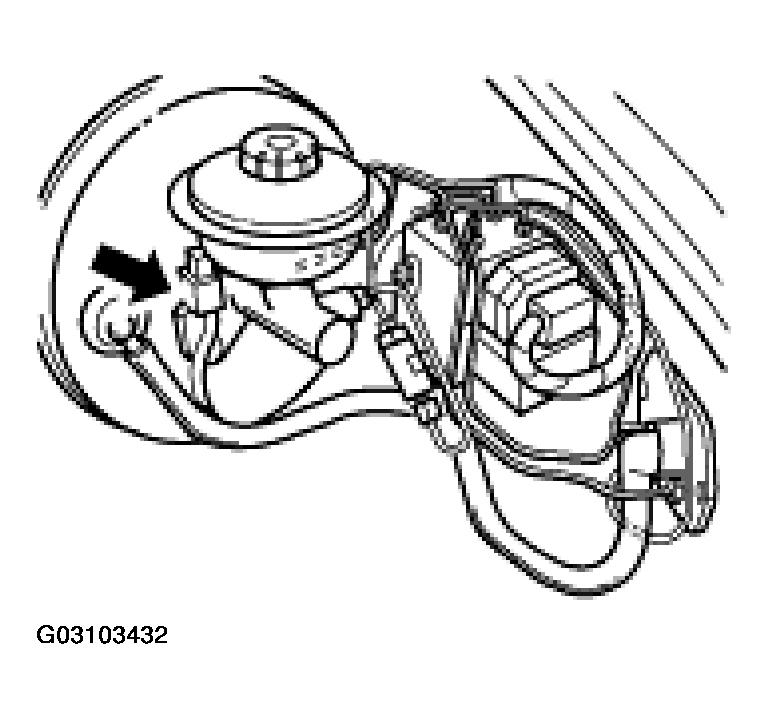

Fig 2: Disconnecting The Electrical Line (Plug)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
For vehicles with manual transmission, remove the clutch line at the reservoir.
- Press on the ring to do this (unlocking) and pull the line out of the reservoir at the same time.
Undo the brake lines on the brake master cylinder. Close the brake lines and the brake line connections with suitable plugs.
Undo the fastening nuts -A- of the brake master cylinder. Pull out the brake master cylinder. See Fig 3 .
- -A- = Brake master cylinder fastening nuts (Fig 3 ).
- -B- = Brake booster fastening screws (Torx) (Fig 3 ).

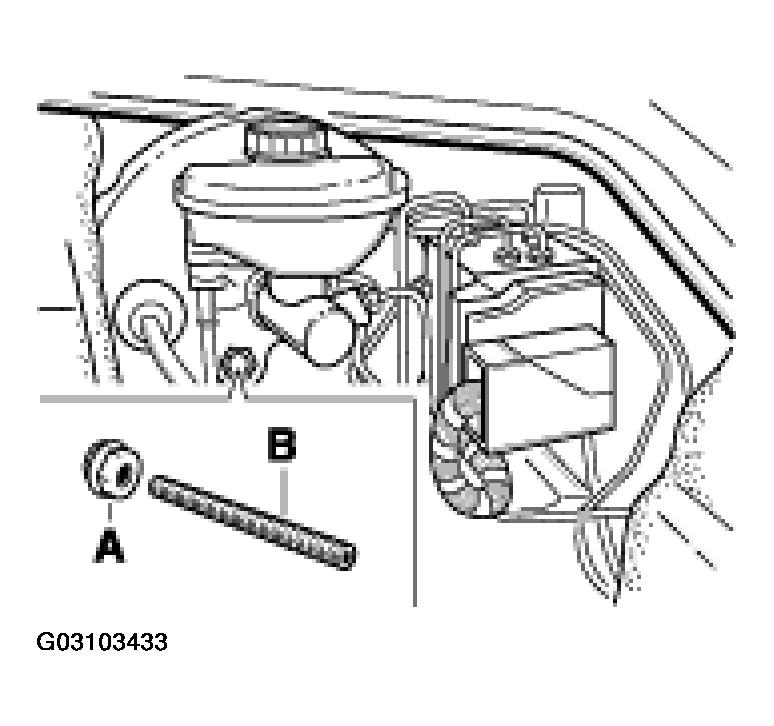

Fig 3: Locating Brake Master Cylinder Fastening Nuts & Brake Booster Fastening Screws (Torx)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
