In The Case Of Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Variant A: First version (spare parts not included)

The 2 rubber bellows -1 and 2- on the brake booster and on the body are no longer available for vehicles with bellows variant A (first version). See Fig 1 .

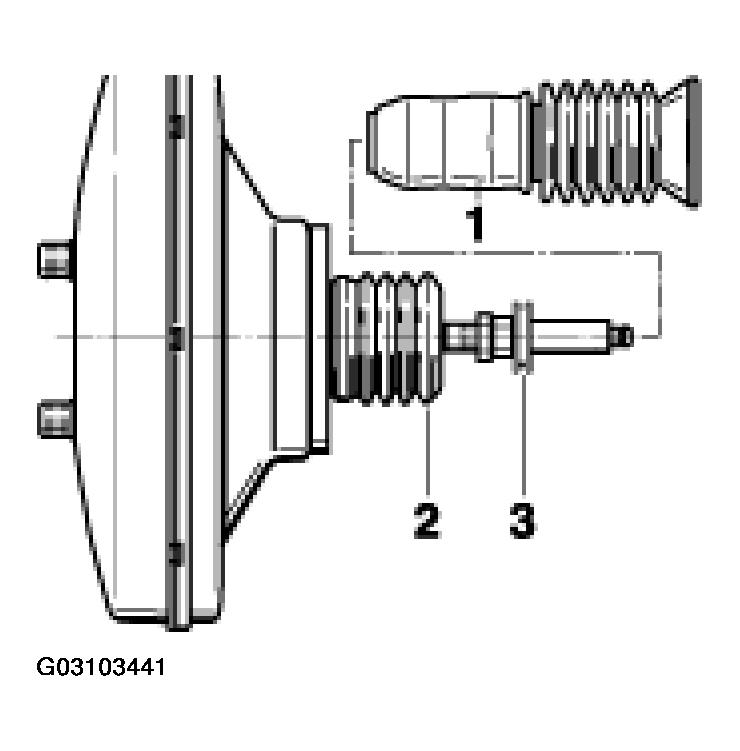

Fig 1: Identifying Brake Booster Rubber Bellows, Variant A (First Version)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

For assembly work in this area, the 2 rubber bellows -1 and 2- and the grommet (rubber groove ring) -3- must be removed and the spare variant A1 must be installed in its place. See Fig 1 .

Variant A1: Spare version for A

With this variant -A1- , the new/current continuous bellows -B- is used instead of the 2 rubber bellows. A seal -7.2- is used together with an appropriate connection sleeve -7.1- for connection to the firewall! See Fig 2 . In addition, the 2 brake pushrods (on the brake booster and of brake pedal) must also be replaced!

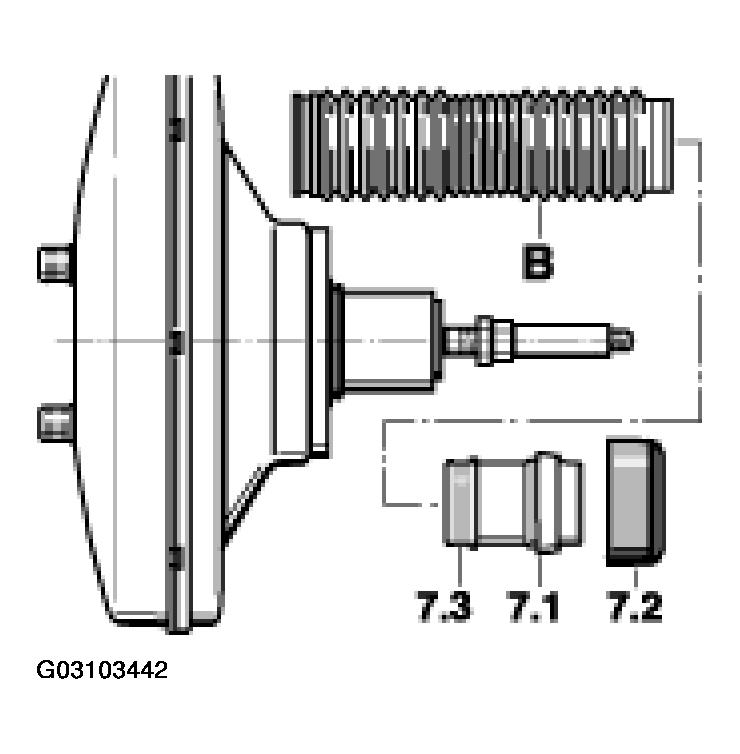

Fig 2: Identifying Brake Booster Rubber Bellows, Variant A1 (Spare Version For A)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The conversion is described in CONVERTING BRAKE BOOSTER (BELLOWS) .

NOTE:

As a replacement part, the brake booster is delivered with the new/current continuous bellows -B- . See Fig 3 .
In general, the following applies: The bellows -B- must be installed. See Fig 3 .

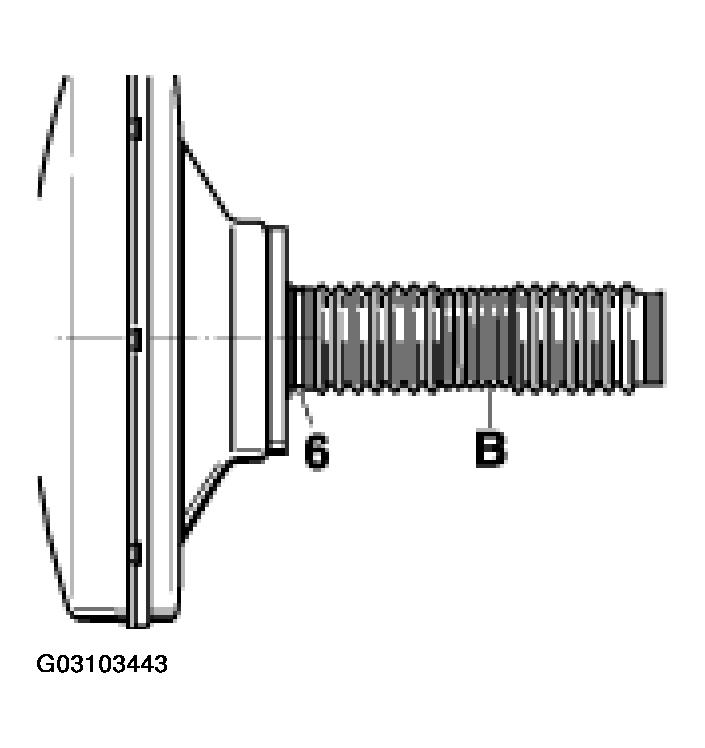

Fig 3: Identifying Brake Booster Bellows, Replacement Part

Courtesy of PORSCHE OF NORTH AMERICA, INC.
