Bellows Versions

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

2 bellows variants have been installed in the since the production launch (first version and new/current version).

The first version -A- with 2 rubber bellows -1 and 2- has been installed up to the vehicle identification numbers listed in the following (Y-range/in the model year 2000). See Fig 1 .

F >>98 ZYS 60 0434 (RoW Boxster)

F >>98 XYS 62 0321 (USA Boxster)

F >>98 ZYS 64 0520 (RoW Boxster S)

F >>98 XYS 66 0089 (USA Boxster S)

F >>98 ZYU 60 0165 (RoW Boxster/Finland production)

F >>98 4YU 62 1422 (USA Boxster/Finland production)

F >>98 ZYU 64 0062 (RoW Boxster S/Finland production)

F >>98 4YU 66 0105 (USA Boxster S/Finland production)

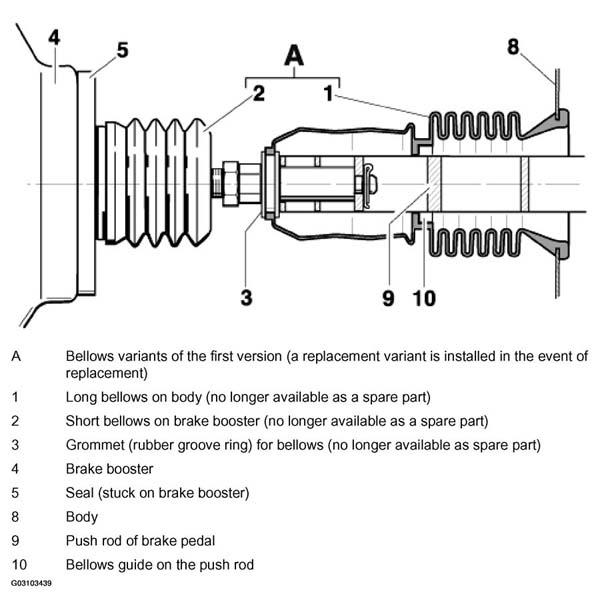

Fig 1: Cutaway View Of Brake Booster Pushrod Mechanism (First Version)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The new/current bellows variant -B- is fitted with only one continuous bellow. Using the bellows version -B- (Fig 2 ) and the following parts have been changed:

Omission of bellows guide on the brake pedal push rod (No. 10 in the first version)
The bellows connection is no longer directly to the body but to a sleeve (pipe) -7- . See Fig 2 .

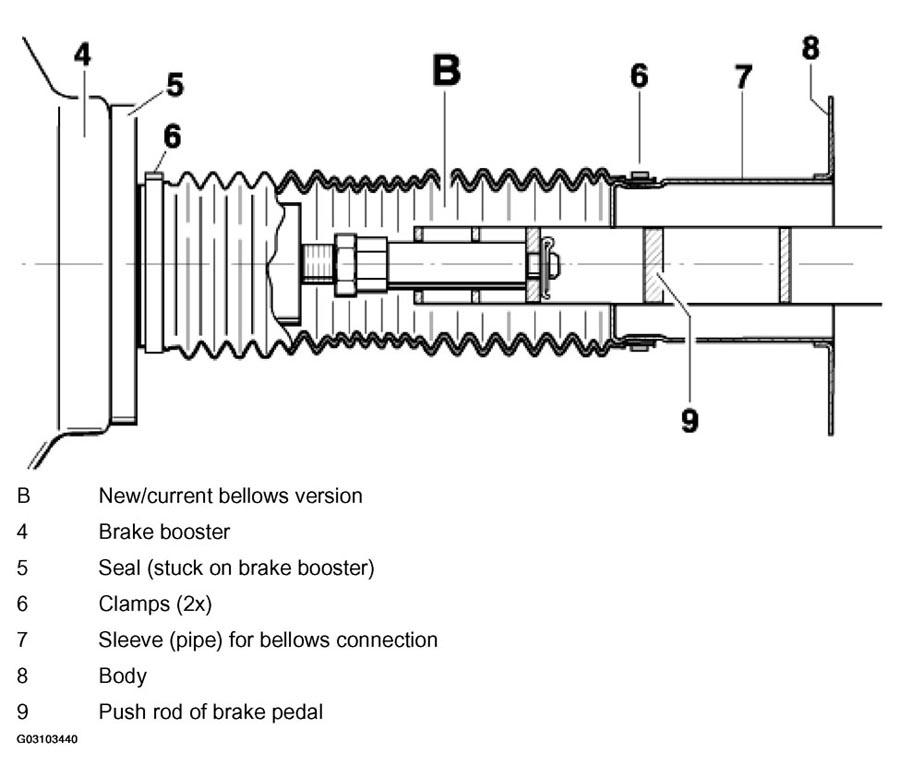

Fig 2: Cutaway View Of Brake Booster Pushrod Mechanism (New Version)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
