Converting Brake Booster (Bellows): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

2 bellows variants have been installed as standard in the Boxster, (first version -A- and new/current version -B- ). See Fig 1 .
The bellows variant of the first version -A- is no longer available as a spare part. The version must be installed in the event of repair -A1- (conversion described in the following). See Fig 1 .

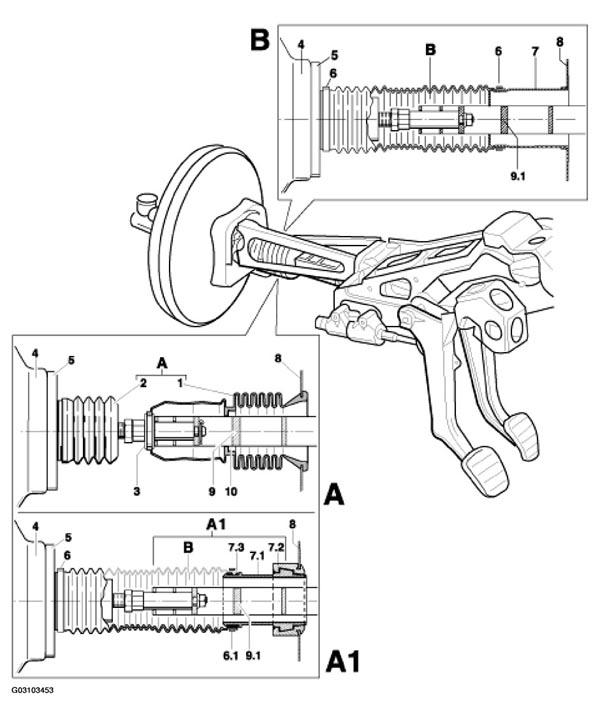

Fig 1: Identiying Brake Booster Bellow Variants

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The conversion described in the following only applies for vehicles in which the bellows first version A (with 2 rubber bellows -1 and 2- ) is installed! See Fig 2 .

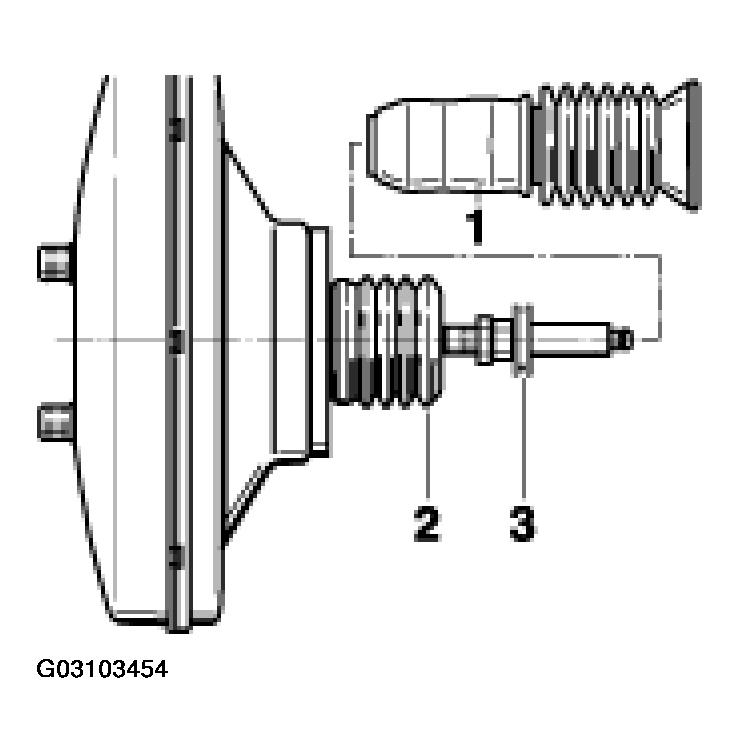

Fig 2: Identifying Brake Booster Bellows First Version A

Courtesy of PORSCHE OF NORTH AMERICA, INC.
