Removing And Installing The Rear Brake Disc: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel. Open the plug connection on the wheel carrier and pull out the plug for the brake pad wear indicator. Unclip the electrical line on the spring strut.
  2. With a screwdriver, turn the adjustment device towards "release" through a wheel bolt threaded hole.

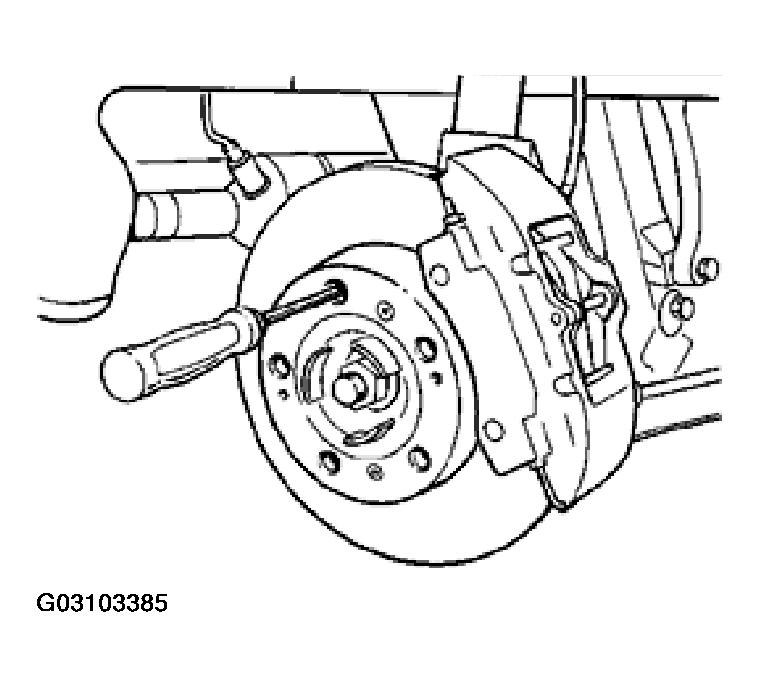

    Fig 1: Turning Adjustment Device With Screwdriver
    G03103385Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Undo the holder for the brake hose/brake line on the wheel carrier. Remove the brake caliper from the wheel carrier and suspend it in the wheel arch (do not open brake hydraulics).
  4. Remove the brake disc after removing the countersunk screws (arrows). See Fig 2 If a stuck brake disc cannot be removed by gentle tapping with the plastic hammer, evenly screw hexagon-head bolts into the two M8 threads of the brake disc, thereby pressing off the disk.

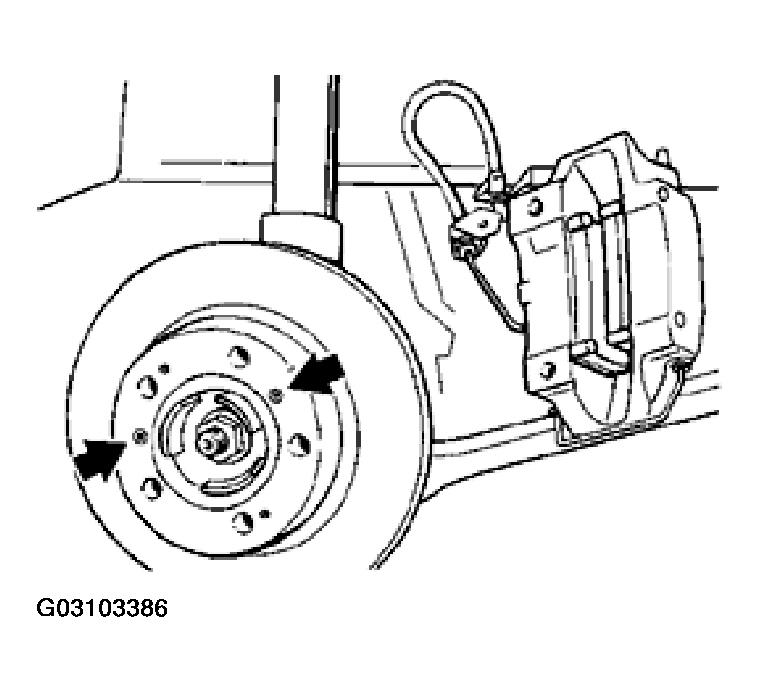

Fig 2: Removing Brake Disc Countersunk Screws
G03103386Courtesy of PORSCHE OF NORTH AMERICA, INC.
