Removing And Installing The Parking Brake Shoes: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel. Open the plug connection on the wheel carrier and pull out the plug for the brake pad wear indicator. Unclip the electrical line on the spring strut.
  2. With a screwdriver, turn the adjustment device towards "release" through a wheel bolt threaded hole.

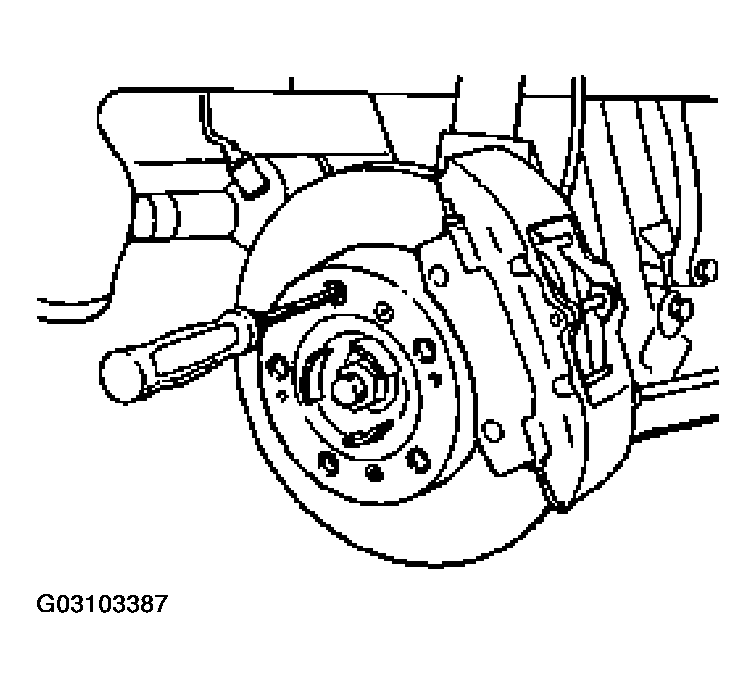

    Fig 1: Turning Adjustment Device With Screwdriver
    G03103387Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove the brake caliper from the wheel carrier and suspend it in the wheel arch (do not open the brake hydraulics). Undo the holder for the brake hose/brake line on the wheel carrier.
  4. Take off the brake caliper after removing the countersunk screws (arrows). See Fig 2 .

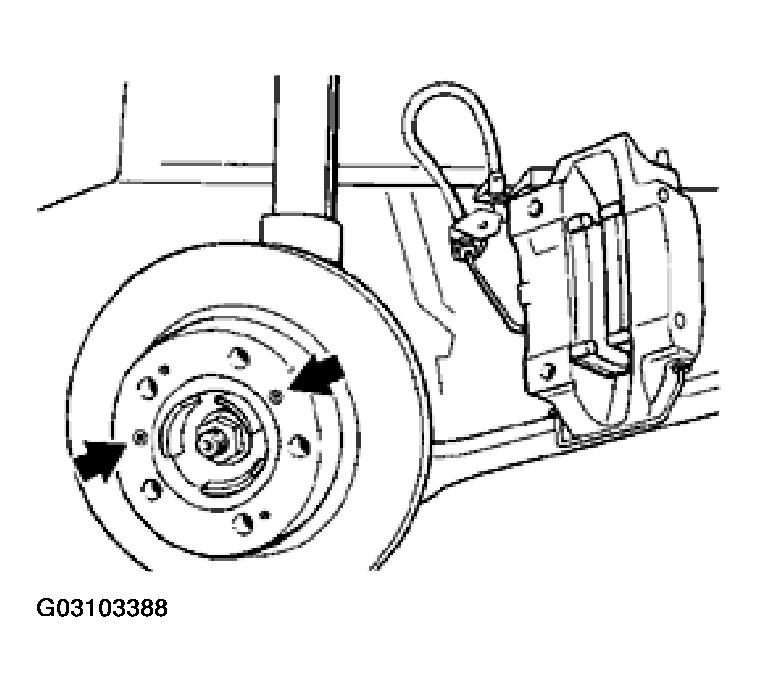

    Fig 2: Removing Brake Caliper
    G03103388Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Remove the compression springs (No. 6), the adjustment device (No. 2) and the return spring (No. 4). Remove the parking brake shoes and the return spring (No. 5).

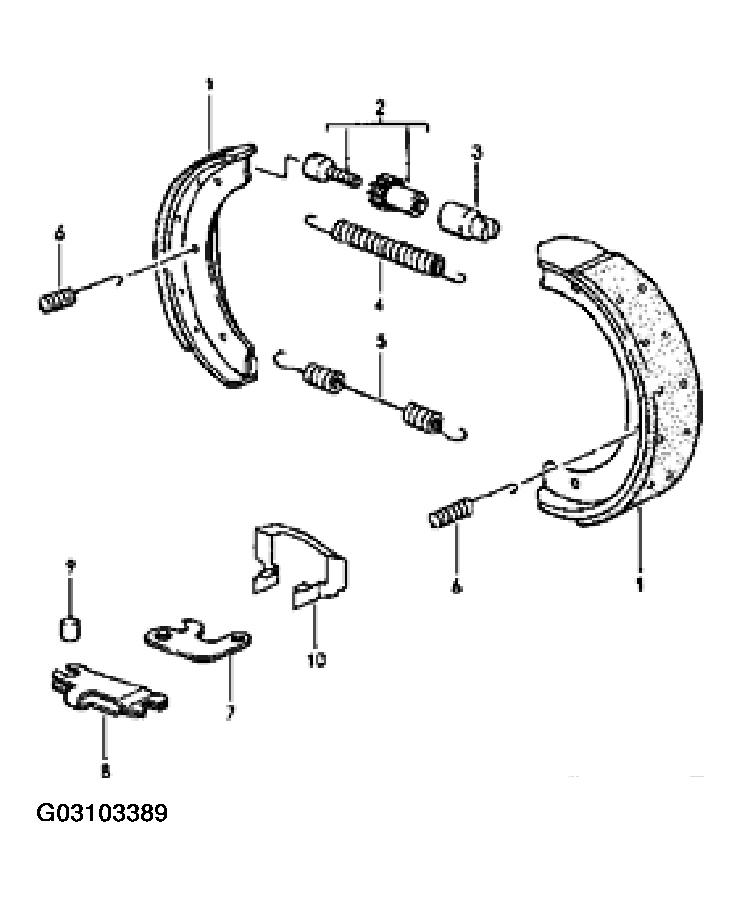

Fig 3: Exploded View Of Rear Parking Brake Shoe Components
G03103389Courtesy of PORSCHE OF NORTH AMERICA, INC.
