Pedal-Group Versions (Distinction): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The pedals of Boxster vehicles as of Mod. '98 (as of Mod. W) are identical to the 996 series pedals, with the exception of the boost spring and boost-spring bracket.
The Boxster pedals before Mod. '98 (before Mod. W) differ from the pedals as of Mod. '98 in the following respects:

Bracket for clutch boost spring cannot be unscrewed. Consequently, the boost-spring bracket cannot and need not be adjusted. Furthermore, the distance between the bearing pins of the boost spring is 3 mm less
Pedal bearing axle with different fastening method arrows (Fig 1 ) (clamping of the steering outer tube and fixing of the pedal-bearing axle)
No return spring on the brake pedal

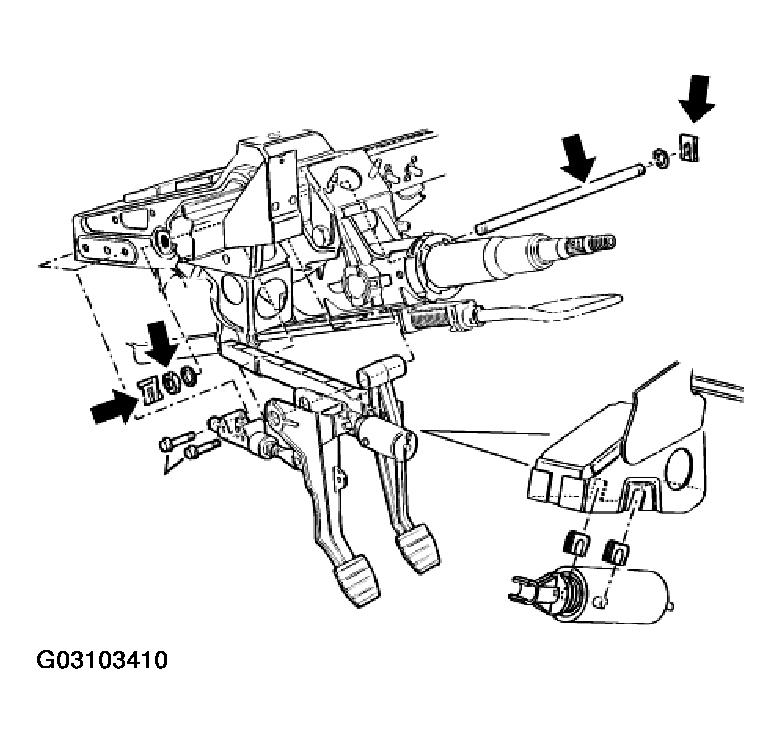

Fig 1: Brake Pedal Components (Boxster Pedals Before Model 1998)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Exploded View Of Brake Pedal And Clutch Pedal Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.
