Example Of Wear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

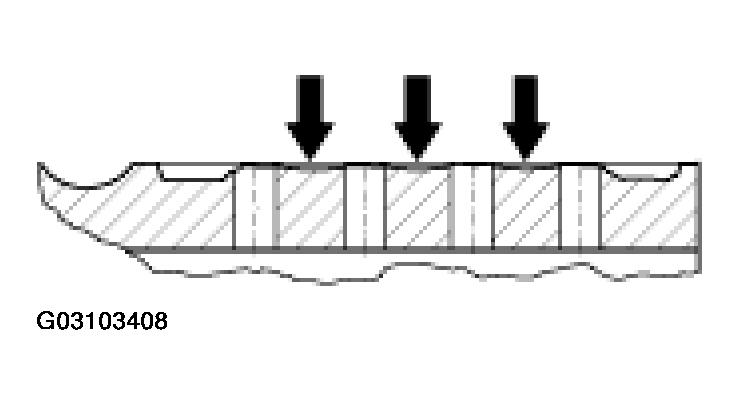

The drawing shows the typical grooved wear profile (-3 arrows-  ) of a perforated grey cast iron brake disc, which has been used to the wear limit, under tough conditions i.e. constant operation mode (test operation mode). See Fig 1 .

Fig 1: Locating Smooth Friction Rim Zones (Rear Brake Discs)
G03103408Courtesy of PORSCHE OF NORTH AMERICA, INC.
