Evaluating Cracks On Grey Cast Iron Brake Discs

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The brake discs must be replaced (as a precautionary measure), if the perforation crack length is over 5 mm (as there is no mileage reserve in the event of further extreme load) and/or the friction plate rim is torn (less smooth braking and an increase in the likelihood that a disc will break)!
In the evaluation of damage, the following drawings must be used!

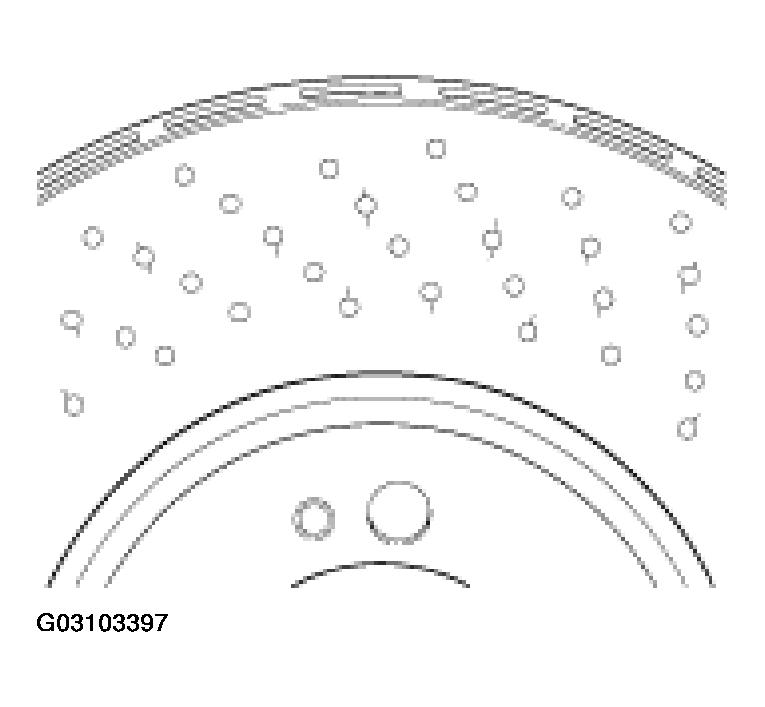

Corresponds to a disc exposed to above-average load. See Fig 1 .
- Need not be taken out of the vehicle!
Fig 1: Identifying Cracks On Grey Cast Iron Brake Discs (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

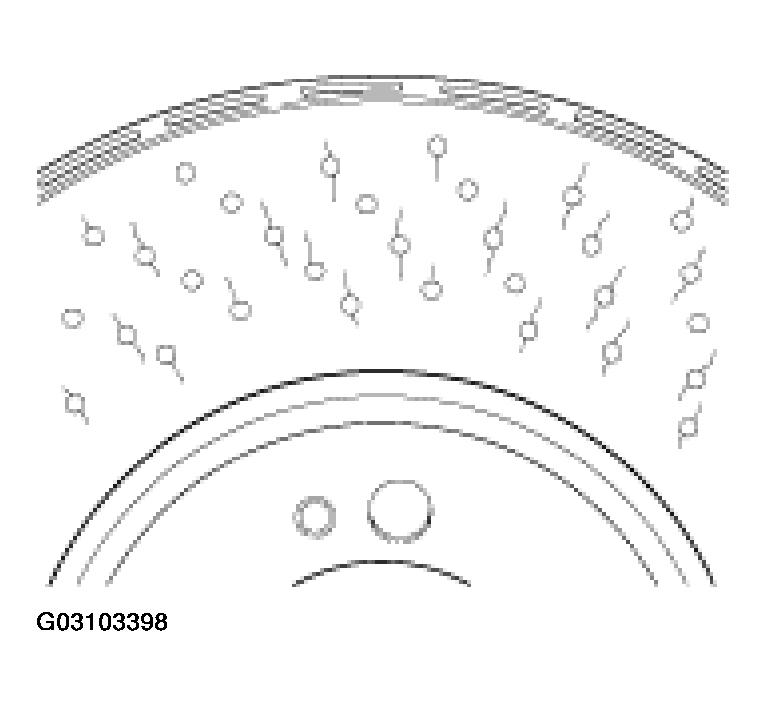

In parts, perforation starter cracks are over 7 mm long. Conditions after shock braking 1,200 times (minimum desired: shock braking 200 times). See Fig 2 .

Fig 2: Identifying Cracks On The Grey Cast Iron Brake Discs (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Brake disc can no longer be used!

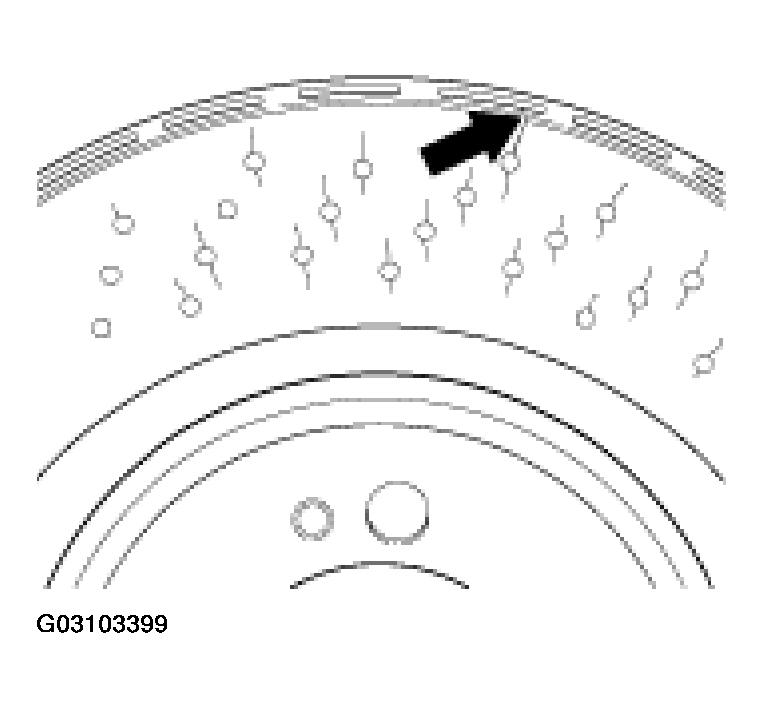

Brake disc with torn friction plate rim -arrow- . See Fig 3 .
- Brake disc can no longer be used!
Fig 3: Identifying Cracks On The Grey Cast Iron Brake Discs (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
