Test 2 (Lateral RUNOUT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Mount the adapter plate 9510/1 -arrow- on the wheel hub. See Fig 1 . Tightening torque of the wheel bolts (fastening screws): 130 Nm (96 ft lb.).

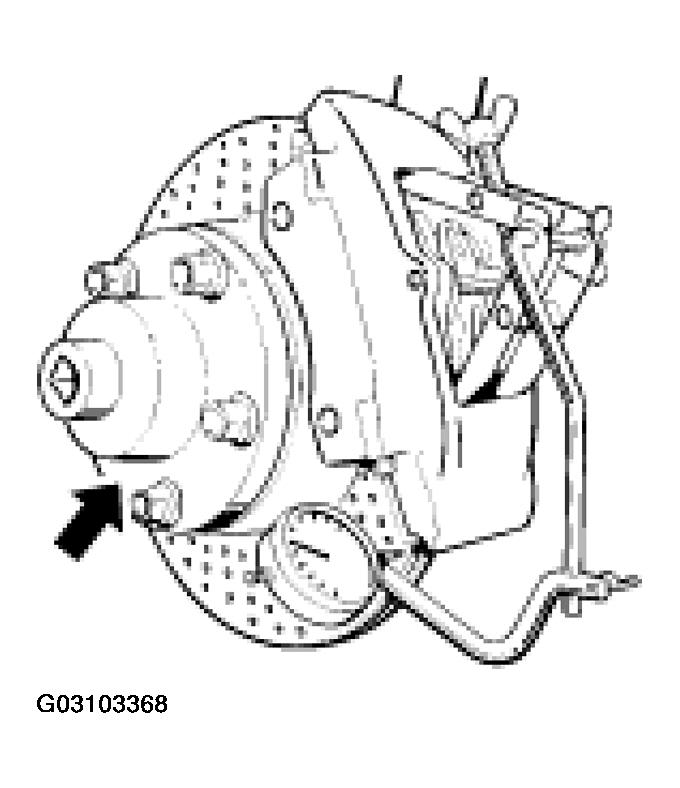

Fig 1: Measuring Disc Lateral Runout
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Secure the dial gauge with some preload. The measuring range is on the largest diameter of the braking surface.
Check the wheel hub lateral runout as described below: Measure 1 x outside -arrow- and 1 x inside -arrow- of the wheel bolt area (5-point measuring procedure) on the front face of the wheel hub. See Fig 2 . Fasten the dial gauge using a commercially available universal dial gauge holder.

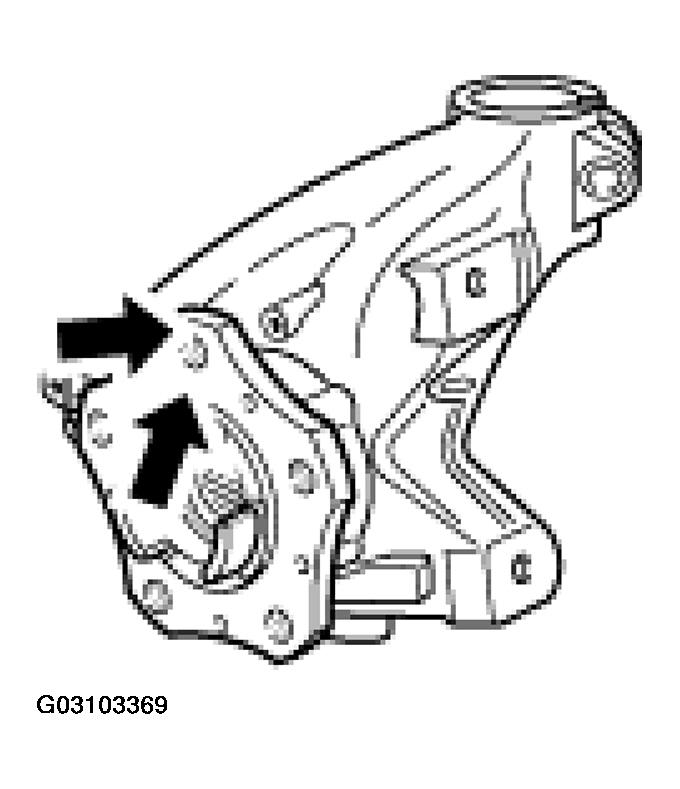

Fig 2: Checking Wheel Hub Lateral Runout

Courtesy of PORSCHE OF NORTH AMERICA, INC.
