Test 1 (Brake Disc Thickness)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

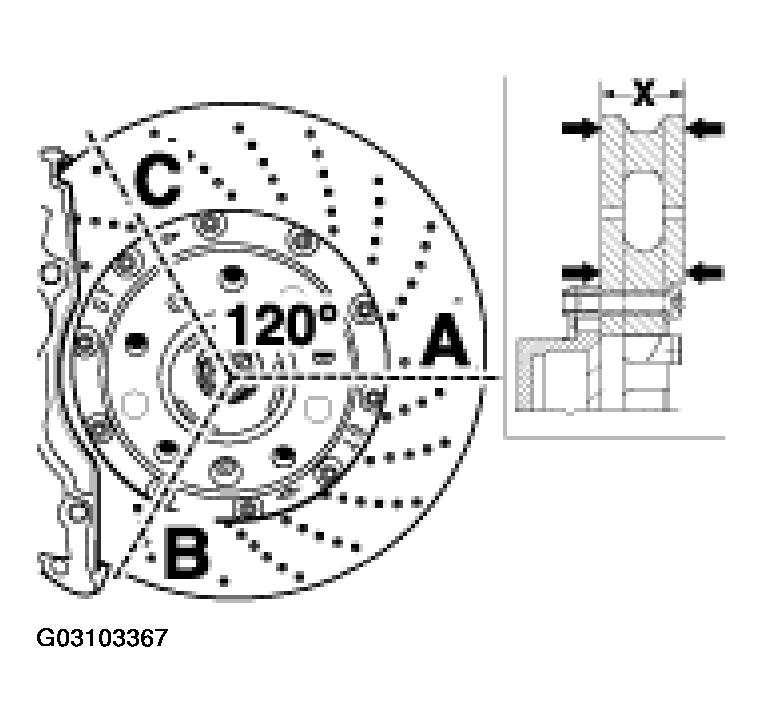

- Always measure the brake disc thickness -X- for perforated brake discs on the most worn outer or inner friction surface trace -arrow- on 3 measuring points (each offset by 120°)- A/B/C-. See Fig 1 . For non-perforated brake discs, measure the thickness -X- in the middle of the disc, also on 3 measuring points (each offset by 120°). To do this, use a suitable micrometer screw or a brake disc gauge (drawing shows a GT2 brake disc).
