Overview of components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

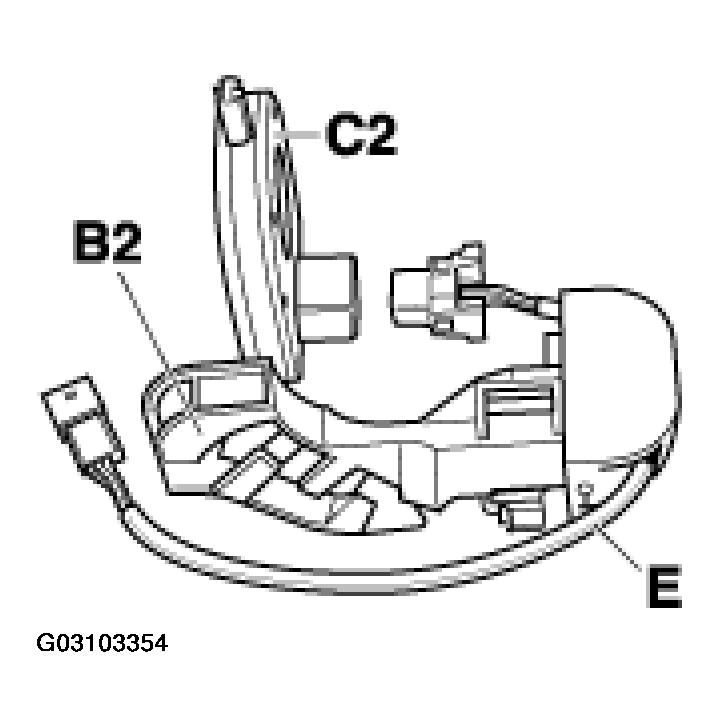

Fig 1: Overview Of Steering Angle Sensor Components
G03103354Courtesy of PORSCHE OF NORTH AMERICA, INC.
COMPONENTS SPECIFICATIONS

Designation New components Replaced component
Steering angle sensor
(C2 = new sensor)		 996.606.119.00 996.606.109.01
996.606.109.02
Cable guide
(B2 = new cable guide)		 996.610.123.01 996.610.123.00
Adapter lead -E-  996.622.906.00 Additional lead
(connection between the previous lead and the new steering angle sensor)

PIN assignment of adapter lead -E-

PIN ASSIGNMENT OF ADAPTER LEAD E

-Large plug- Circuit -Small plug-
PIN1 Ground PIN 4
PIN 2 + 12 volts (vehicle voltage) PIN 3
PIN 3 CAN H PIN 2
PIN 4 CAN L PIN 1
