Removing and installing rate-of-turn sensor: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The rate-of-turn sensor is a micro-mechanical component and is very sensitive to impacts!
NOTE: Perform removal and installation with the ignition switched off!
  1. Move the front seats into the rear seat position.
  2. Remove side-panel lining in front of the centre console on the left -A-  and right.

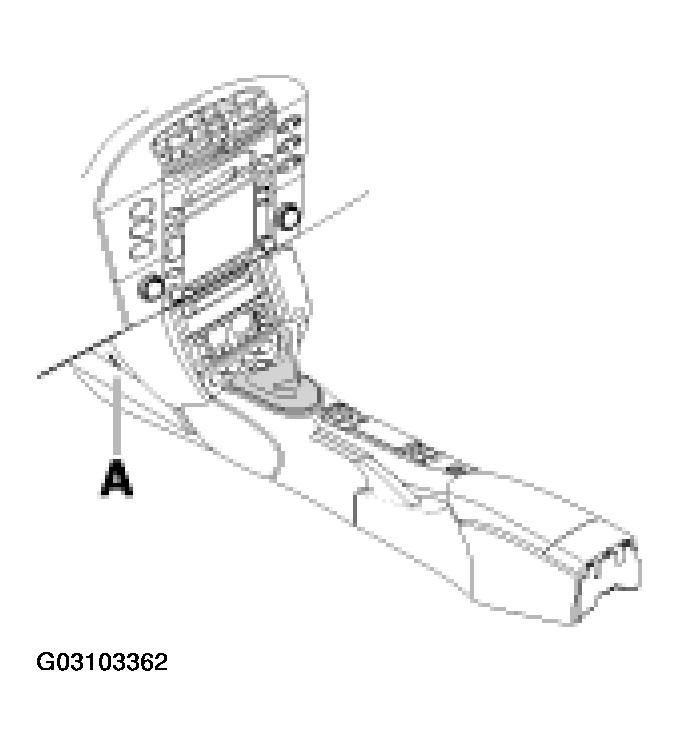

    Fig 1: Removing Side-Panel Lining In Front Of Centre Console On Left
    G03103362Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove fastening nuts of the rate-of-turn sensor on the right and left. See Fig 2 .

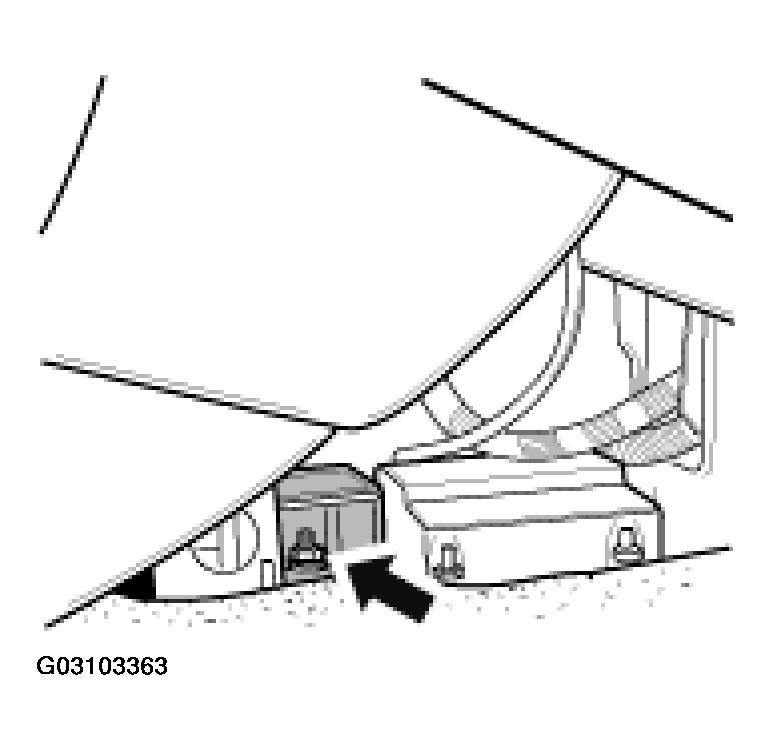

    Fig 2: Removing Fastening Nuts Of Rate-Of-Turn Sensor
    G03103363Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull out the rate-of-turn sensor and unlock and pull off the plug with the ignition switched off.
NOTE: Pull at the plug housing only! Never pull the electrical connections!
