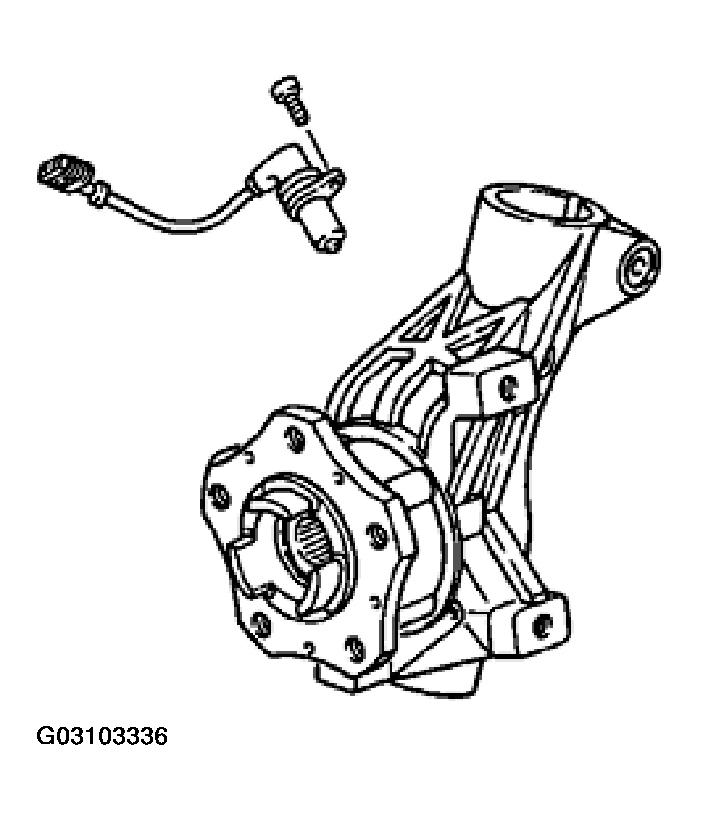

Removing and installing front speed sensors: Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
- With ignition switched off, open the combination plug connection at the spring strut and pull out the plug for the speed sensor.
- Loosen fastening screw (hexagon socket head bolt) and remove the speed sensor.
Important notes
Before installation, ensure that there are no metal chips at the magnetic edge of the speed sensor.
The gap between speed sensor and pulse wheel is determined by the design and cannot be adjusted.
