Tyre mounting for critical wheels/tyre pairs: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The mounting machine described here is particularly suitable for difficult tyre constellations. All parts in contact with the wheel and the tyres are made of plastic. No large point load for wheel and tyres.

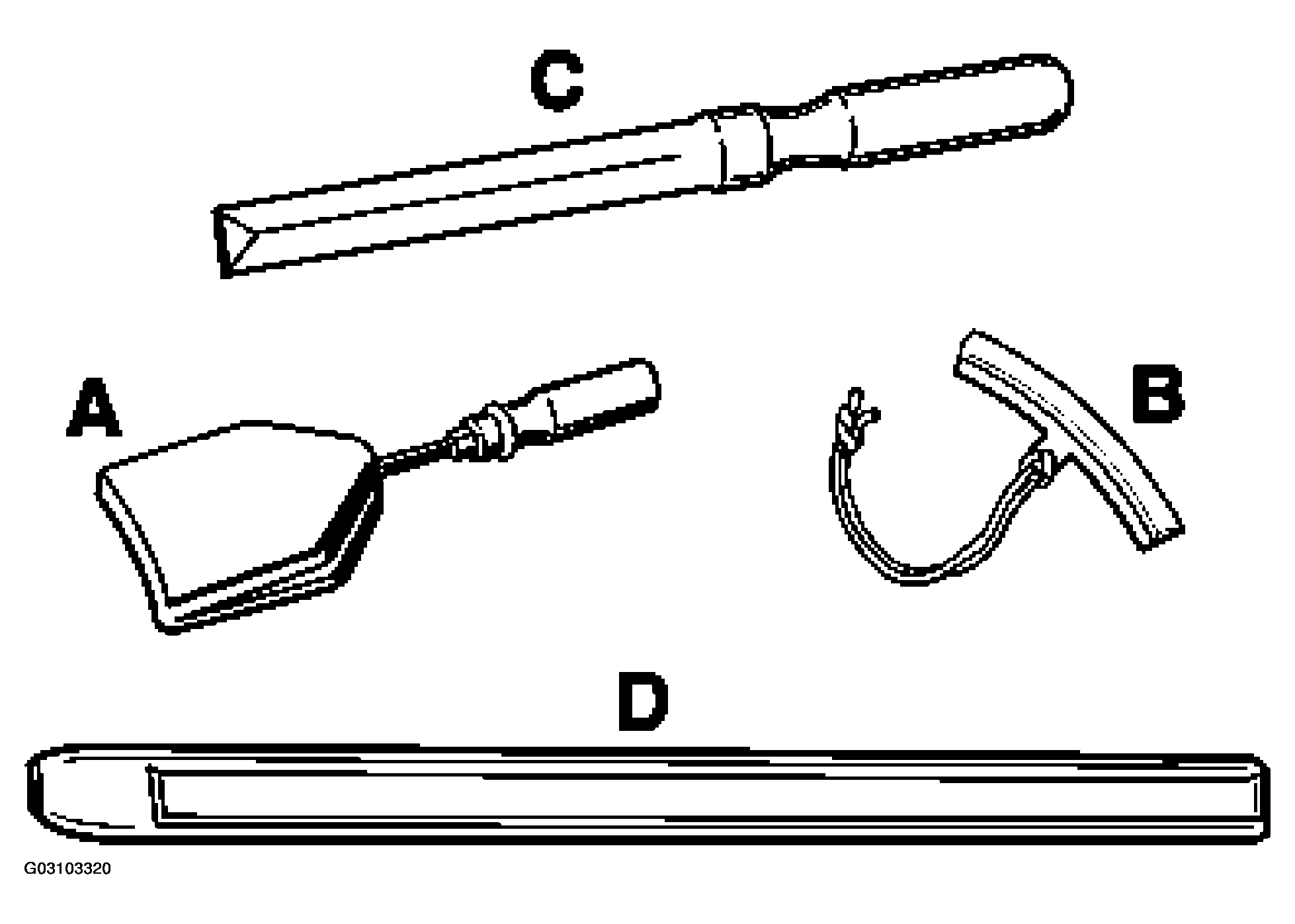

SPECIAL TOOLS - TYRE MOUNTING FOR CRITICAL WHEELS/TYRE PAIRS
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Holding-down device | 9539 | To hold down the tyre bead |
| B | Assembly aid | Commercially available | As protection for the rim flange |
| C | Adhesive weight remover | Commercially available | |
| D | Mounting lever | Commercially available |
