Adjusting toe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work: Check whether the steering wheel is displaced with respect to the steering gear. To do this, centre the steering gear as described below.

Turn wheels to the straight-ahead position.

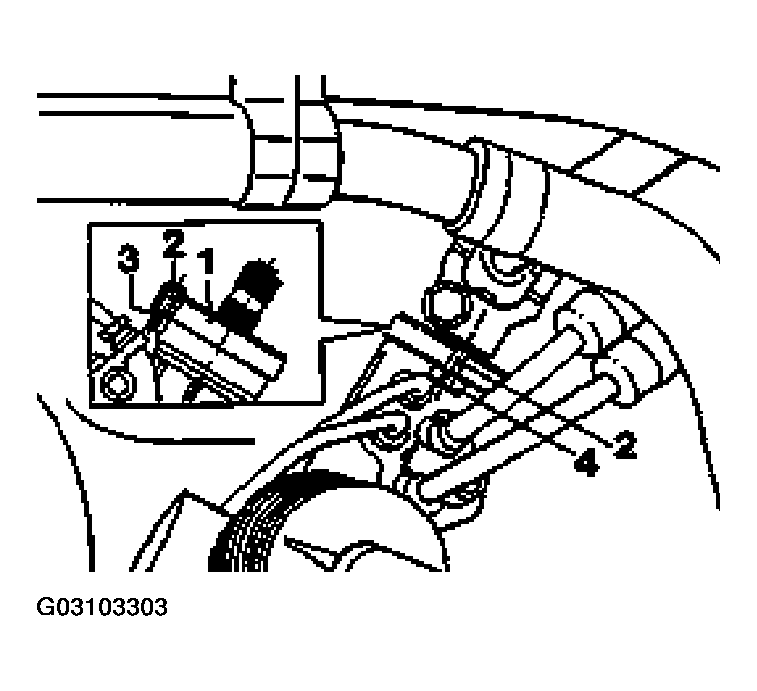

Then readjust the front wheel alignment, if necessary, until pin No. 2 in driver No. 1 and the lug on the steering gear housing No. 4 line up.

No. 3 is the desired breaking point for pins in new steering gears. (New) pin No. 2 is inserted into driver No. 1 and lies with its underside within the recess of lug No. 4. This locks the steering gear in the centre position. After installation of a new steering gear, the lower part of the pin is sheared off (at the desired breaking point No. 3) by turning the steering wheel. The upper part of the pin remains in the driver.

If necessary, reposition the steering wheel. When doing this, seek the best position.

Fig 1: Adjusting Toe - Front Axle

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WARNING: A triggering of the airbag (malfunction in the airbag system) caused by improper work on airbag components cannot be ruled out! In the case of such a malfunction, an unsuitable steering wheel holder could cause injury or damage!

Use only steering wheel holders which do not project into the area of the airbag unit!
Observe safety regulations when working with airbag vehicles (see SAFETY REGULATIONS FOR VEHICLES WITH AIRBAG AND BELT TENSIONER )!

Clamp steering wheel in centre position with steering wheel holder. See Fig 2 . Use only steering wheel holders which do not project into the area of the airbag unit! If necessary, shorten the guide rod (A) at top (arrow).

Fig 2: Clamping Steering Wheel In Center Position

Courtesy of PORSCHE OF NORTH AMERICA, INC.

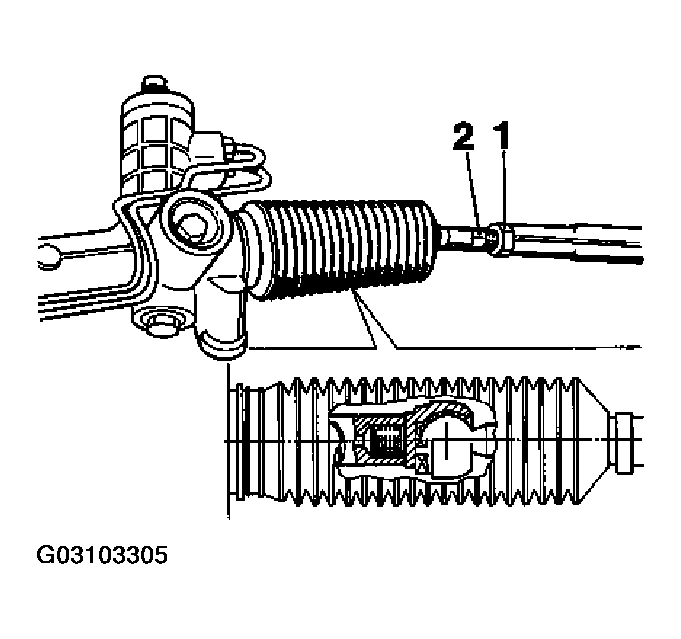

Then adjust toe at hexagon No. 2 of the track rod(s) after loosening the lock nut(s) No. 1. See Fig 3 . Then tighten the lock nut(s) No. 1 to the prescribed tightening torque.

Fig 3: Adjusting Toe At Hexagon No. 2 Of The Track Rod

Courtesy of PORSCHE OF NORTH AMERICA, INC.

If the tie rod lock nut(s) is(are) 21 mm across flats, use special tool 9625 in combination with a torque wrench to tighten.

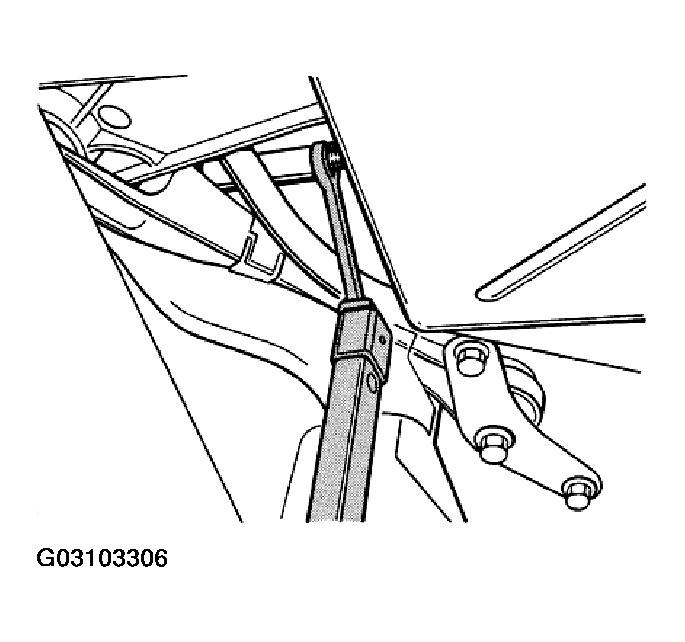

Fig 4: Tightening Tie Rod Lock Nut Using Special Tool 9625

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The prescribed lock nut tightening torque of 50 Nm (37 ftlb.) corresponds to a setting on the torque wrench of approx. 35 Nm (26 ftlb.).
