Adjusting caster
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
The caster is not adjustable on standard vehicles. In the event of repairs, a caster adjustment facility can be installed if necessary. See INSTALLING CASTER ECCENTRIC .

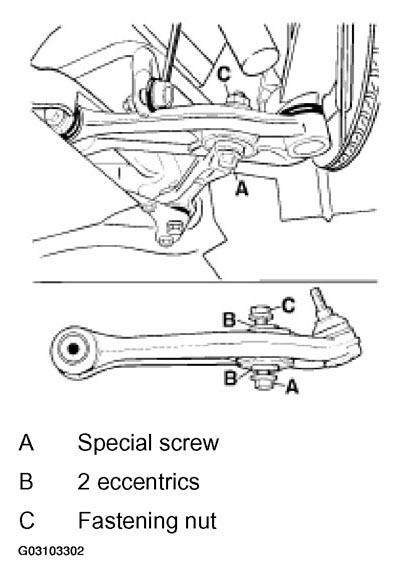

On vehicles with a caster adjustment facility, adjust the caster by turning the special screw (A) with the fastening nut (C) loosened. See Fig 1 . Then tighten the fastening nut (C) to 160 Nm (118 ftlb.).
