Identifying the wheel size
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

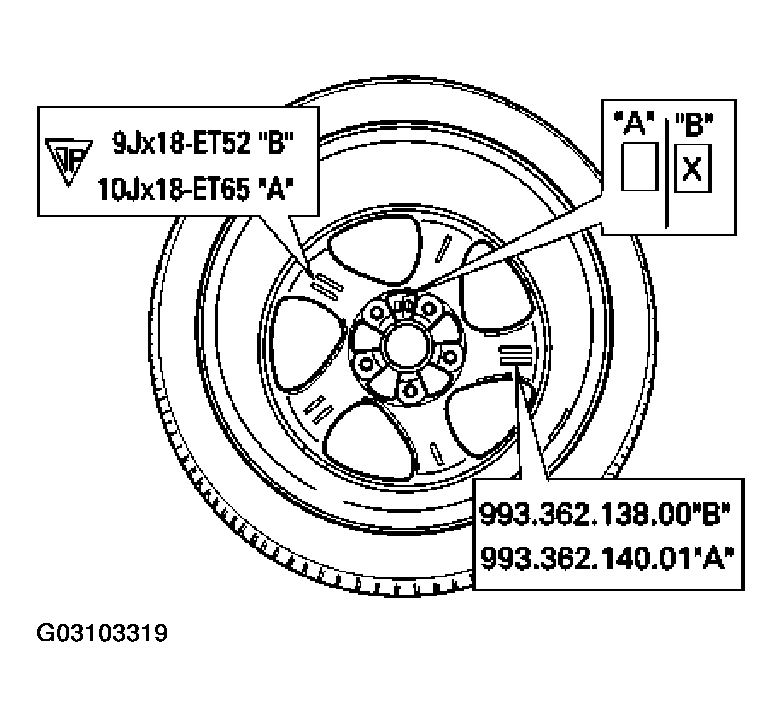

Markings on the inner side of the wheels identify 18-inch Turbo wheels with the sizes 9J x 18 RO 52 and 10J x 18 RO65.
The sizes together with the rim offset (RO) and spare part number are marked with A or B. The correct version for the model is marked with an X which is struck into the "A" or "B" boxes provided.
Fig 1 shows model "B".
Marking "A"
18-inch Turbo wheel: 10 J x 18 - RO 65 Spare Part No. 993 362 140 01.
Marking "B"
18-inch Turbo wheel: 9 J x 18 - RO 52 Spare Part No. 993 362 138 00.
