Removing and installing front wheel bearing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

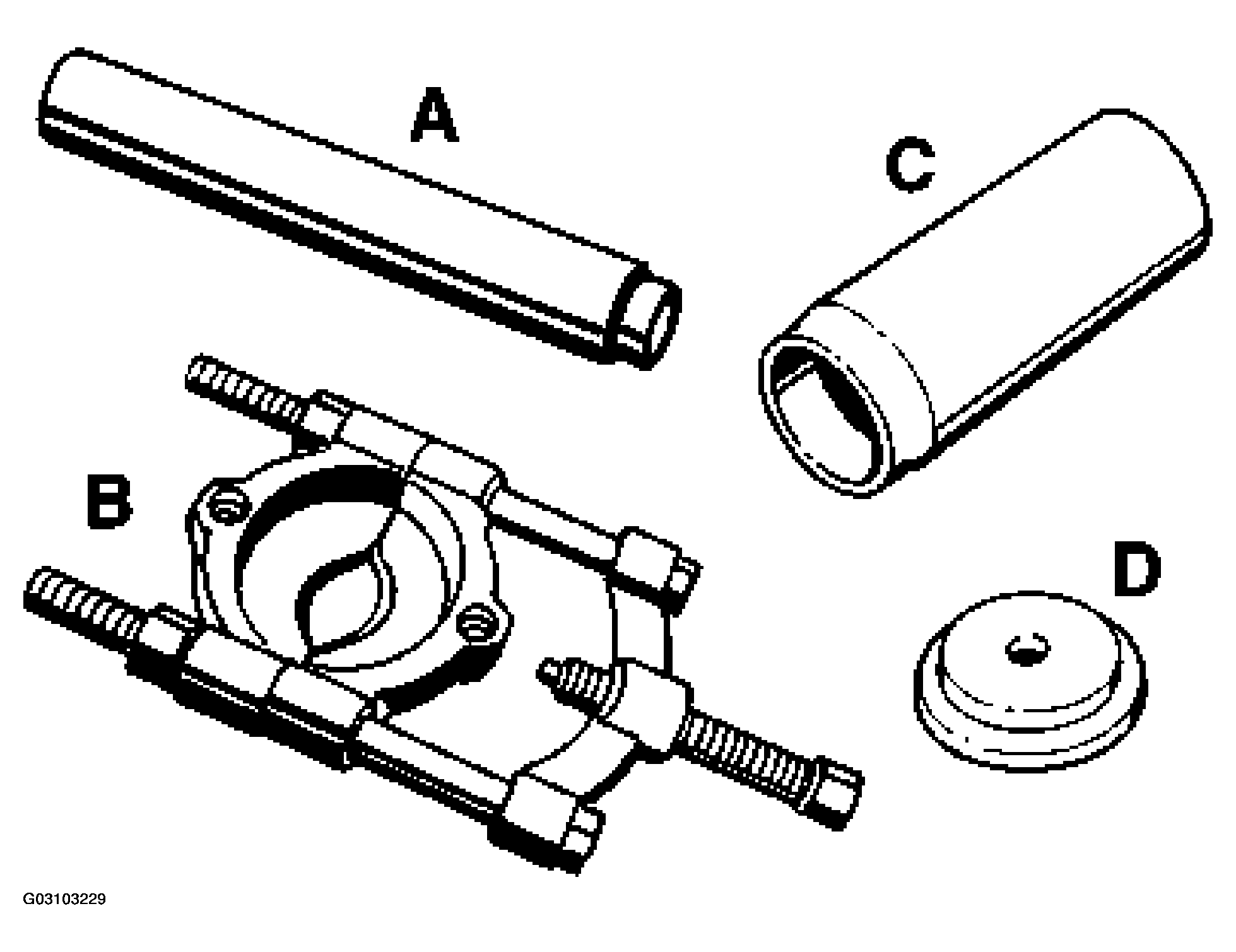

Fig 1: Identifying Front Wheel Bearing Removing And Installing Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT WHEEL BEARING REMOVING AND INSTALLING TOOLS EXPLANATION

Item	Designation	Special tool	Explanation
A	Pressure piece	P 297 A	For pressing out the wheel hub
B	Separator (12 - 115 mm phi)	Commercially available; refer to Workshop Equipment Manual, Chapter 2.4, No. 111	Used as a support when pressing out the wheel hub and when pressing the wheel bearing inner race off the wheel hub
C	Tubular piece	VW 415 A	For pressing the wheel bearing out and in
D	Pressure piece	9247/4	Use in combination with tubular piece C to press in the wheel bearing

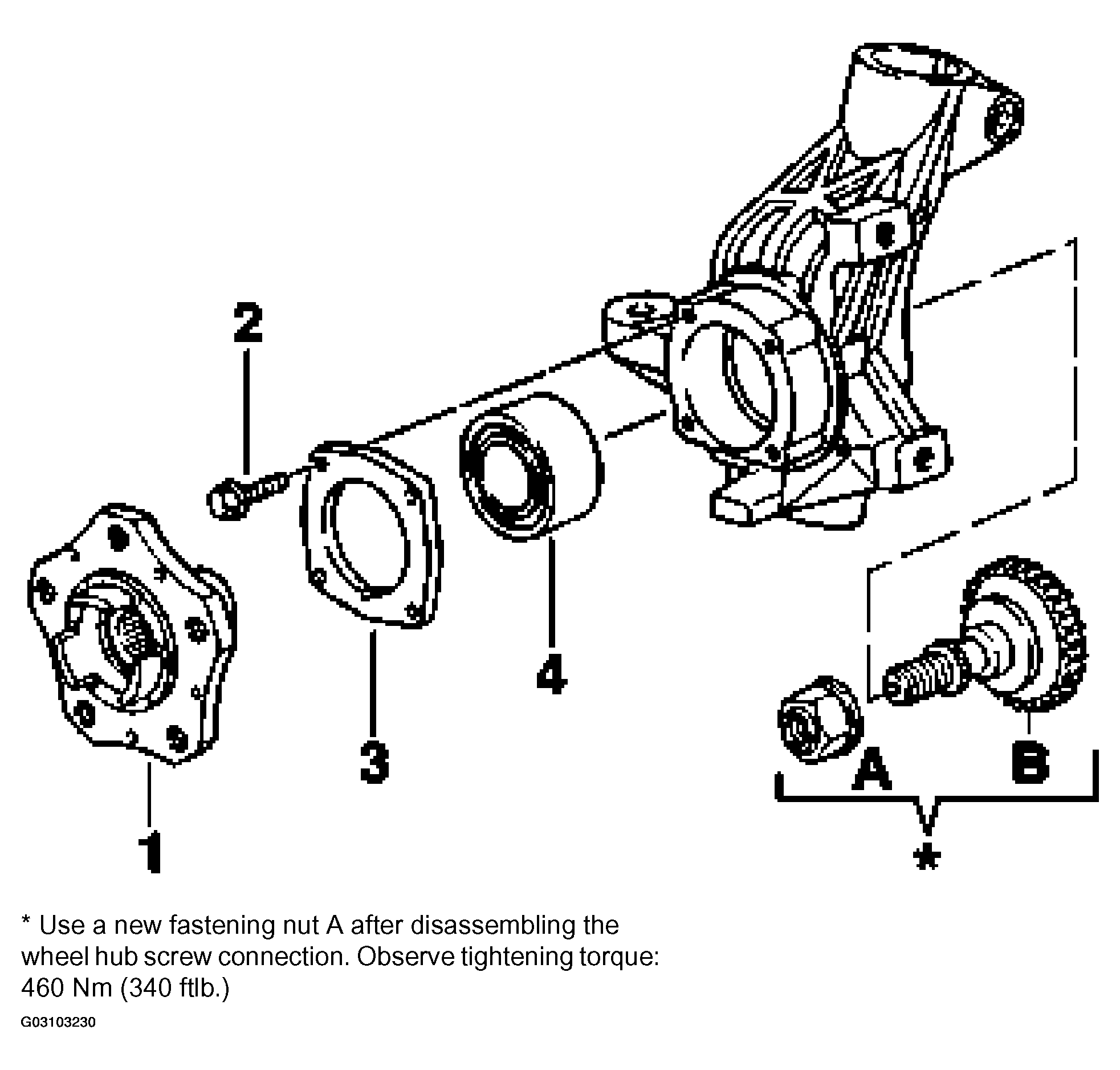

Fig 2: Exploded View Of Wheel Hub And Front Wheel Bearing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT WHEEL BEARING REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Wheel hub	1	Press out with pressure piece P 297 A under a hydraulic press. For this purpose, use the separator and corresponding shims for support.	Press in under a hydraulic press. To do this, place the wheel hub on the wheel centering device and press it on the wheel bearing inner race using pressure piece VW 415 A
2	Hexagon-head bolt (10.9)	4		Tighten to 37 Nm (27 ftlb.)
3	Lid	1		Fit in correct position (groove down)
4	Wheel bearing	1	Heat wheel bearing housing to approx. 100° C (max. 120° C). Press out wheel bearing with tubular piece VW 415 A (tool C).	Heat wheel bearing housing to approx. 100° C (max. 120° C). Insert new wheel bearing in correct position (inscription facing the wheel hub), and then press again slightly using pressure piece 9247/4 (tool D) and tubular piece VW 415 A (tool C).
