Removing and installing front spring strut: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order. Before installing, give parts a visual check. Replace brake caliper fastening screws.
Do not grease screwed connections in Dacromet finish - aluminium color. Use correct tightening torque.
Insert spring strut into vehicle. Note the installed position of the spring strut mount. The arrow markings must point to the outer side of the vehicle (A). The shock-absorber piston rod is thereby shifted outwards. Use new fastening nuts. Before tightening the fastening nuts, adjust spring strut mount in accordance with the applied marking (position of the three collar nuts). Tightening torque 37 Nm (27 ftlb.).

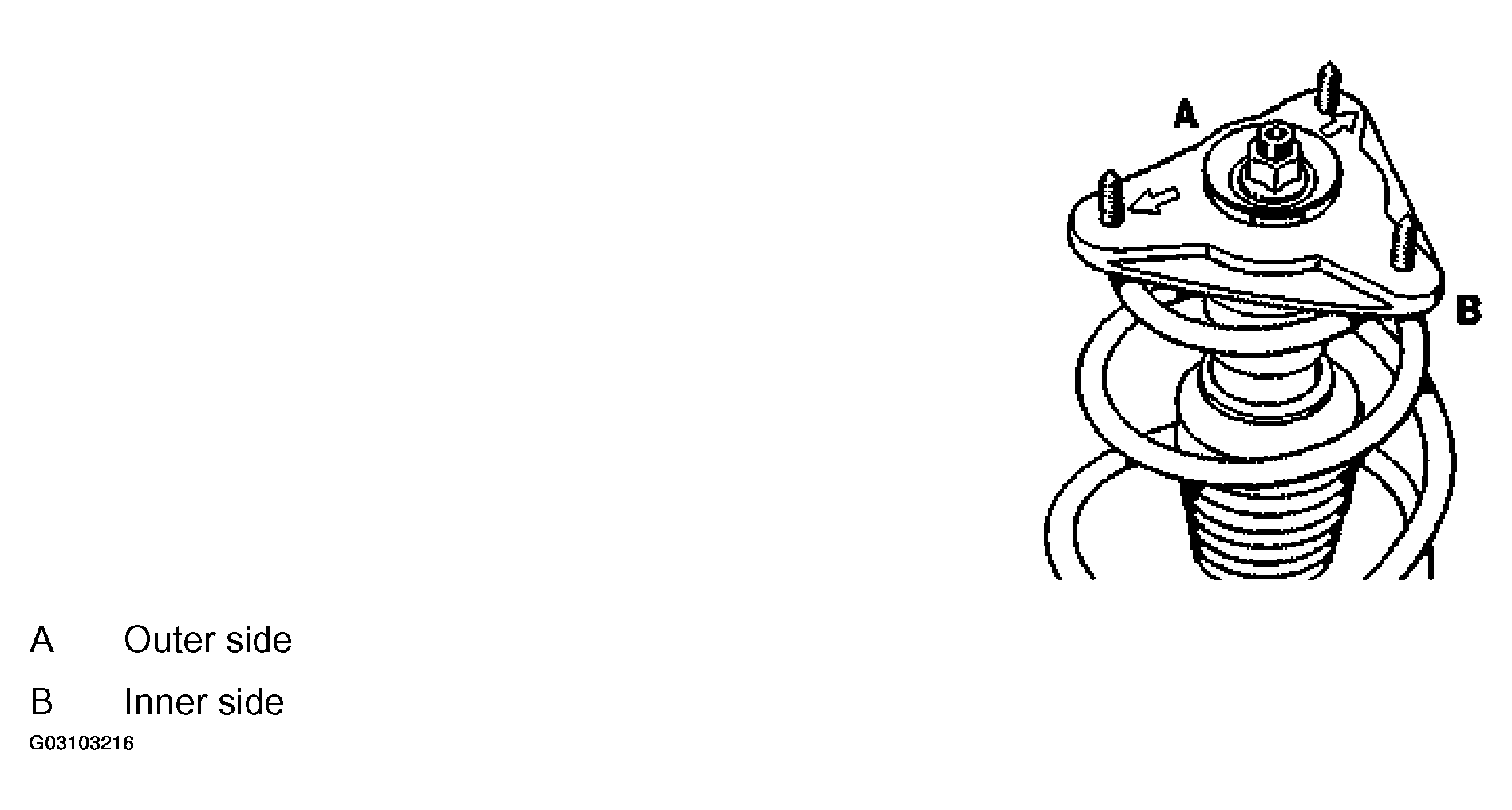

Fig 1: Identifying Spring Strut Mounting Position
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check and adjust steering-geometry values at the front axle.

NOTE:

If assembling work has been performed or parts replaced that affect vehicle height, a complete wheel alignment is necessary.
