Removing and installing front axle strut (control arm): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order. Before installing, give all parts a visual check. Replace self-locking nuts. Use correct tightening torques.
If an axle strut with an adjustable caster eccentric is being installed, refer to Installing caster eccentric .
When installing the control arm, make sure that the control arm fastening screw (E) is tightened only in vehicle position. Vehicle position means: Vehicle must be standing on its wheels, or the wheel suspension is lifted with a universal lift until the markings line up (arrow).

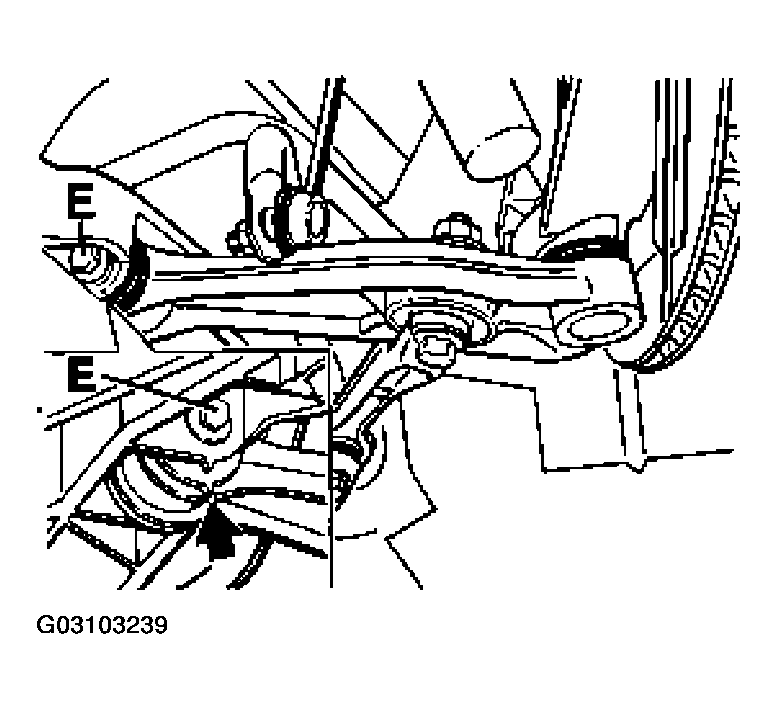

Fig 1: Installing Control Arm
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check wheel alignment values and correct if necessary.
