Adjusting caster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

With the fastening nut (C) loosened, adjust the caster by turning the special screw (A). Adjusting values and suspension alignment in WHEELS, TYRES, SUSPENSION ALIGNMENT . Tighten fastening nut (C) to 160 Nm (130 ftlb.).

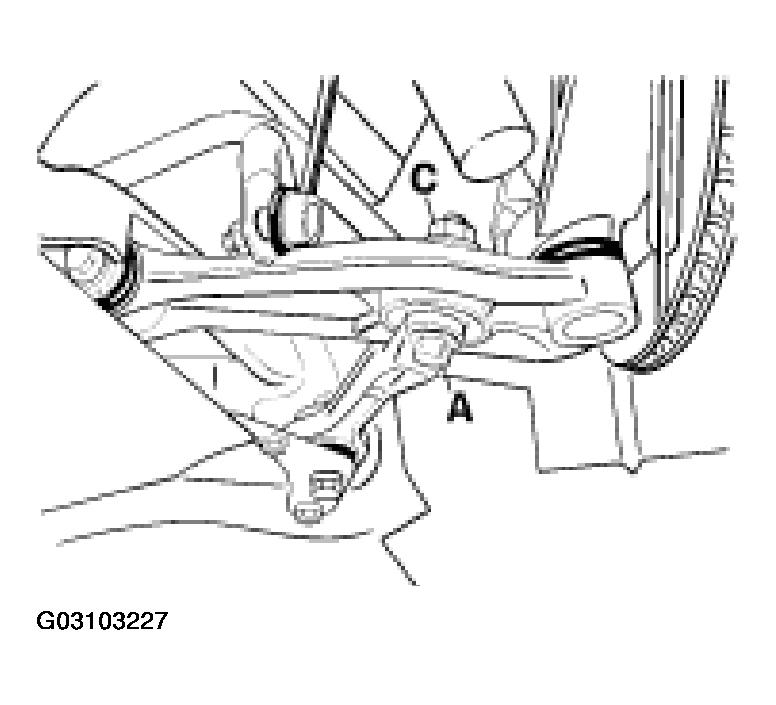

Fig 1: Adjusting Caster Angle

Courtesy of PORSCHE OF NORTH AMERICA, INC.

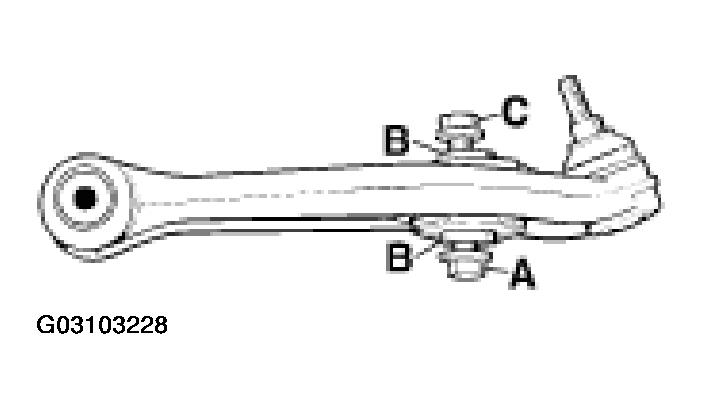

Fig 2: Identifying Caster Adjustment Screw

Courtesy of PORSCHE OF NORTH AMERICA, INC.
