New front-axle cross member - as of model '02

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

As of model '02, the front-axle cross member is attached to the body at the rear fastening with two screws -arrows- . See Fig 1 . Up to this (up to the end of model '01), only one screw was used in the fastening.

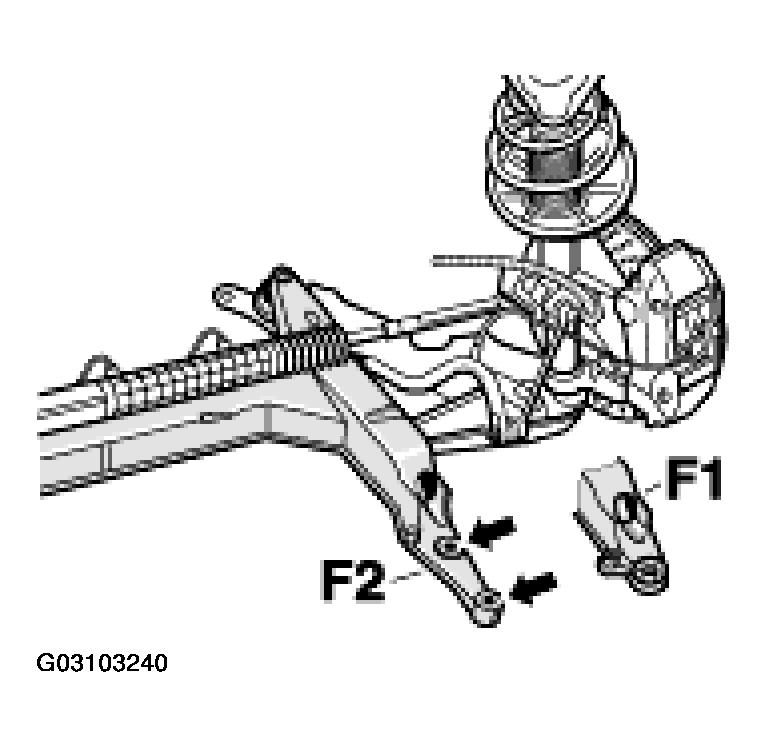

Fig 1: Identifying Front-Axle Cross Member Screws (As Of Model 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The tightening torque has not been changed.
The previous front-axle cross member -F1- in Fig 1 , with one fastening screw securing it to the body (per side) is still available as a spare part.
Only certain combinations of front-axle cross member attachment -F1 or F2 - in Fig 1 to the body is permitted!

F2 2 fastening points (as of model '02)

F1 1 fastening point
