Allocating the front-axle cross member to the body

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Material damage will result in the area of the axle mount/axle fastening due to reduced strength, if correct allocation is not observed

Only install permissible combinations of front-axle cross member to the body (standard construction)!
Do not install front-axle cross members with one fastening screw (F1) in vehicles with two body mounting points (K2)!

Impermissible combination

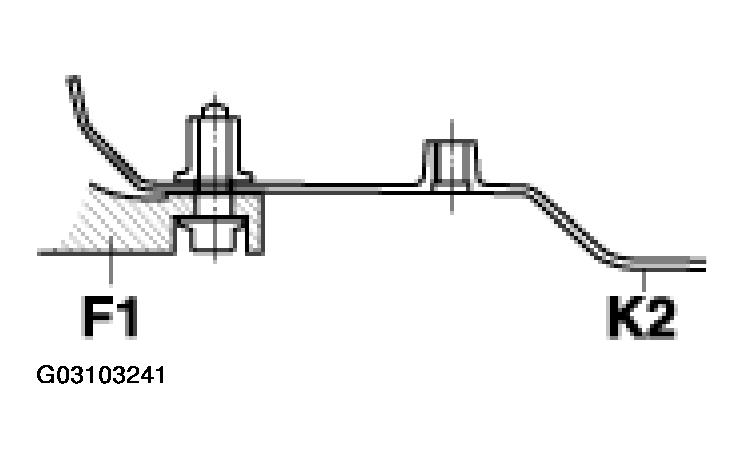

Front-axle cross member with one fastening bore -F1- and body with two fastening points -K2-.

Fig 1: Identifying Front-Axle Cross Member Fastening Bore And Fastening Points (Impermissible Combination)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Attention: Impermissible combination!

Permissible combinations

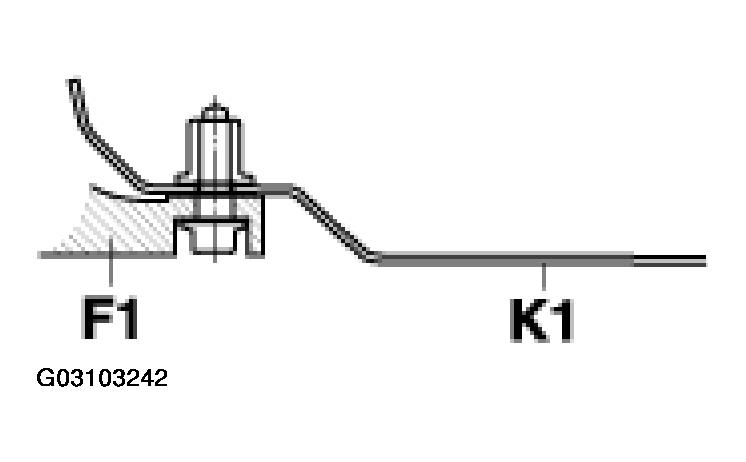

Front-axle cross member with one fastening bore -F1- and body with one fastening point -K1-.

Fig 2: Identifying Front-Axle Cross Member Fastening Bore And Fastening Points (Permissible Combination Up To End Model '01)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Standard construction up to end model '01.

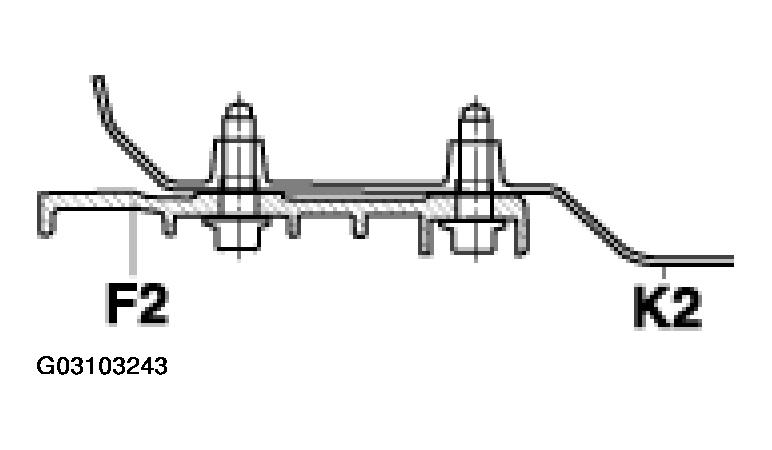

Front-axle cross member with two fastening bores -F2- and body with two fastening points -K2-.

Fig 3: Identifying Front-Axle Cross Member Fastening Bore And Fastening Points (Permissible Combination As Of Model '02)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Standard construction as of model '02.

Impermissible combination

The combination - front-axle cross member with two fastening bores and (F2) and body with one fastening point (K1) - is not possible!
