Replace nut for fastening the piston rod on the spring strut mount.
It is recommended to replace the coil springs only in pairs.

NOTE:

If the coil springs are exchanged, it might be necessary to use a different spring plate than before.

The following spring plates (compensation parts) are available:

Allocation of the spring plate according to the coil spring tolerance group. See Figure .

1 green line = 6.5 mm thick compensation part

1 white line = 3.0 mm thick compensation part

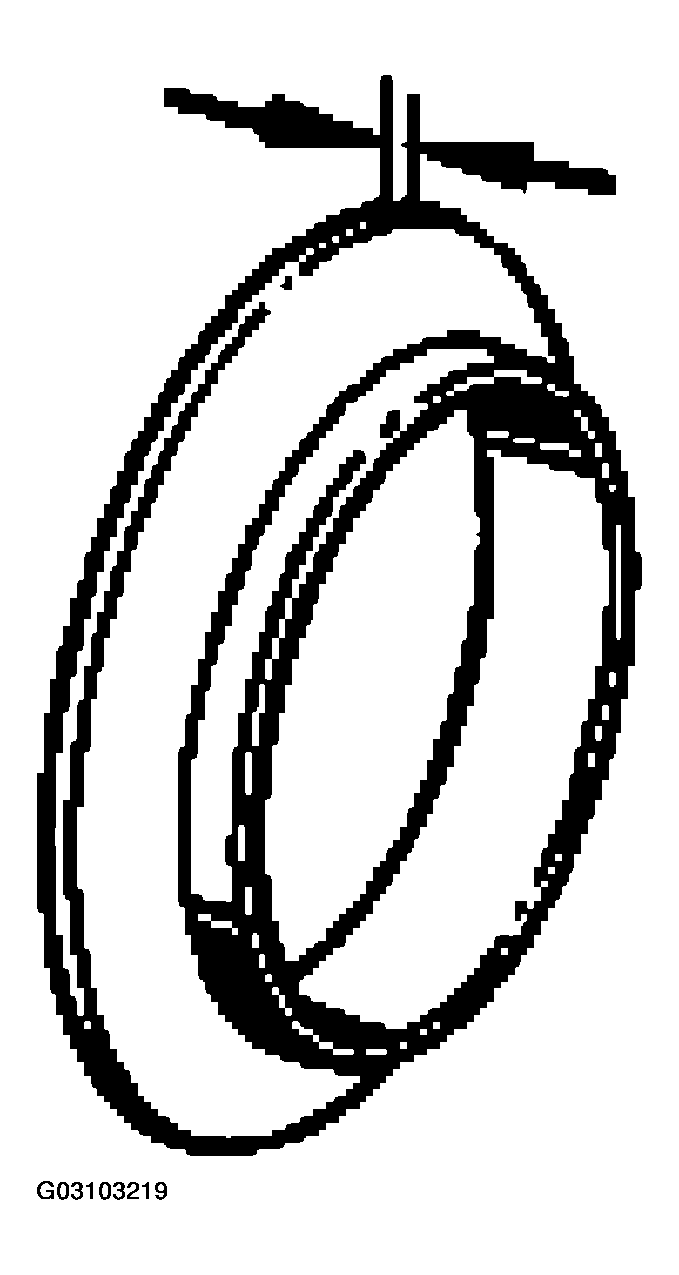

Fig 1: Identifying Spring Plate Thickness

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Press spring plate No. 6 (compensation part) into the assembly consisting of mount No. 5 and back-up ring No. 5a and complete with the spring strut mount No. 3.

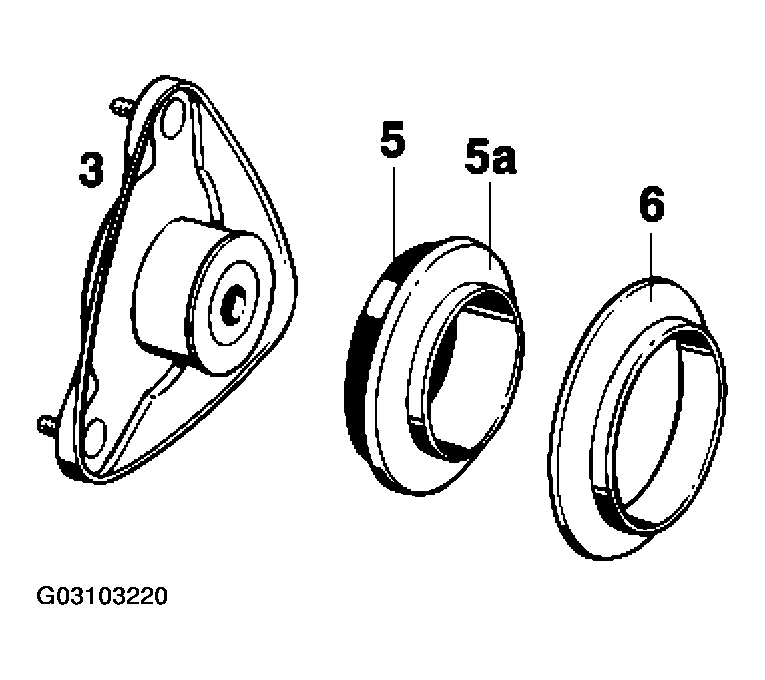

Fig 2: Pressing Spring Plate Into Assembly (Mount & Back-Up Ring)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit protective bellows on additional spring.
Observe the correct allocation (running gear version) when installing new springs and/or dampers.
Tension coil spring with spring clamp.
